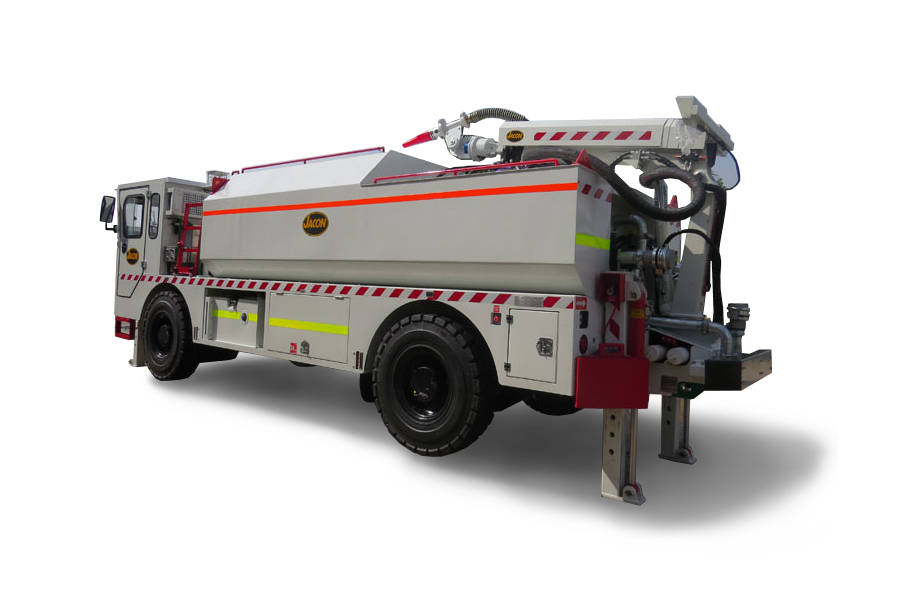

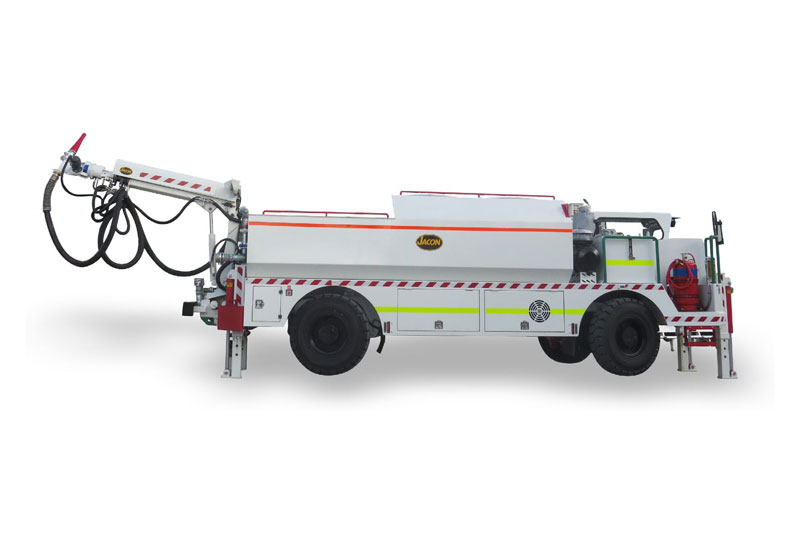

JWJ6 Waterjet 12,000
4 Wheel Drive / 4 Wheel Steer
The JACON Waterjet 12,000L has been purpose built to provide a range of applications to the mine in order to accelerate development cycles.
Key features
- 12,000L water tank capacity
- Ability to spray up to height of 50m
- Spray bars used to spray decline faces and walls to suppress dust
Benefits
- Used to waterblast stope hung ups
- Wash vehicles and truck trays from hung up dirt
- Can be driven and operate remotely to the stopes
- Option to set up with fire-fighting capabilities
- Transport potable water around site
- Option to set up with thermal imaging camera for heat detection
- Watering decline faces over the top of the unit
- Adjustable water pump speed from cabin
Description
4 Wheel Drive / 4 Wheel Steer
You must be logged in to post a review.
Related products
-
JCV3 Cassette Vehicle
Read moreThe JACON Cassette Vehicle is a robust multi-purpose vehicle designed and built to carry various cassettes to a number of...
View product -
T60 Truck Mounted Concrete Pump
Read moreJACON’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product -
Spraymaster
Read moreThe Spraymaster has been purpose built for trouble free shotcreting operations. With a maximum pumping output of 60m3/hr, (30m3/hr whilst...
View product -
Transmix 6000 Shotcrete Combo
Read moreThe unit is set up for a “one man” operation – the bowl automatically discharges to keep the hopper filled...
View product
Specifications
Engine
| Engine | 205kW @ 2200RPM |
|---|
Carrying Capacity
| Carrying Capacity | 12,000 kgs / 12,000 L |
|---|
Drive
| Diesel-Hydraulic Drive | Standard |
|---|---|
| Electric-Hydraulic Drive | X |
| Diesel & Electric Drive | X |
Dimensions
| Length | 8591 |
|---|---|
| Width | 2793 |
| Height | 2821 |
| Total Weight (Unloaded) | 14,870 kgs |
| Total Weight (Fully Loaded) | 26,870 kgs |
| Steering Type | 4WD/4WS |
Turning Radius
| Inner | R3729 |
|---|---|
| Outer | R7345 |
Drive & Gradeability
| Unloaded | Loaded | |
| Max Speed @ 0% Grade | 21km/h | 18km/h |
| Max Speed @ 5% Grade | 17.2 km/h | 15.9km/h |
| Max Speed @ 10% Grade | 16.4km/h | 13.8km/h |
| Max Speed @ 15% Grade | 15.6km/h | 11.6km/h |
| Max Speed @ 20% Grade | 14.8km/h | 9.5km/h |
| Max Speed @ 25% Grade | 14 Km/h | 7.4km/h |
| Max Grade Climb Ability | Full Load: 25% @ 6 Km/h |
