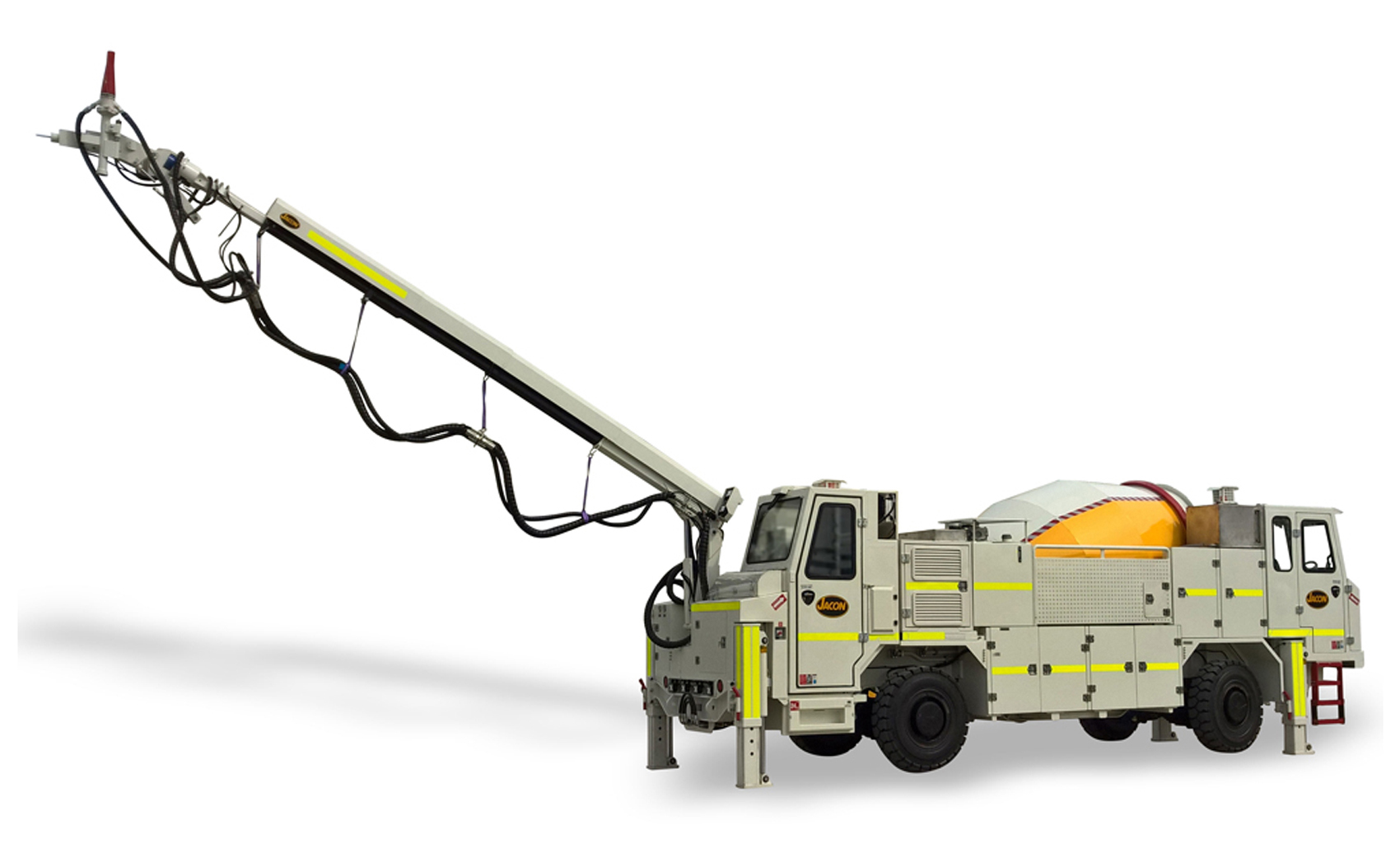

Transmix 6000 Shotcrete Combo MKII
Stand Up Operator Cabin / 4 Wheel Drive / 4 Wheel Steer
The unit is set up for a “one man” operation – the bowl automatically discharges to keep the hopper filled to a set / predetermined height so the operator can concentrate on the spraying of the shotcrete and control of the boom and nozzle functions.
Key features
- One Man Operation
- Autofill
- Dual Cabin
- Operator Stand-up Cabin
Benefits
- One piece of capital equipment as opposed to two
- Reduction in vehicle interaction underground
- Reduced spare part consumption
- Reduction in maintenance costs
- Reduction is operator personnel costs
- Reduction in training costs
- Reduction in time to setup (15 minute setup time)
- Less material wastage
- Reduces stress on mines ventilation system
Description
Stand Up Operator Cabin / 4 Wheel Drive / 4 Wheel Steer
You must be logged in to post a review.
Related products
-
JCU3 Charjet
Read moreThe Jacon Charjet is a compact, fully integrated charge-up machine purpose built for face and production charging in underground mining...
View product -
Spraymaster
Read moreThe Spraymaster has been purpose built for trouble free shotcreting operations. With a maximum pumping output of 45m3/hr, (30m3/hr whilst...
View product -
JSV3-PV8 Service Vehicle
Read moreThe Jacon Personnel & Service Vehicle is a unique and reliable utility vehicle, with capabilities of transporting 8 personnel underground...
View product -
Tunneljet E3
Read moreThe Jacon Tunneljet E3 is a compact and large size shotcrete rig purpose-built for the toughest shotcrete applications in medium...
View product
Specifications
Engine
| Engine | Mercedes OM926LA |
|---|---|
| 245KW @ 2500 RPM |
Pump Capacity / Drum Capacity
| Pump Capacity | 30m3/hour |
|---|---|
| Drum Capacity | 6m3 bowl |
Drive
| Diesel-Hydraulic Drive | Standard |
|---|---|
| Electric-Hydraulic Drive | X |
| Diesel & Electric Drive | X |
Dimensions
| Length | 9107 |
|---|---|
| Width | 2450 |
| Height | 3436 |
| Total Weight (Empty) | 17,490kgs |
| Total Weight (Full Loaded) | 31,290kgs |
| Steering Type | 4WD/4WS |
Turning Radius
| Inner | R3780 |
|---|---|
| Outer | R7654 |
Drive & Gradeability
| Max Speed @ 0% Grade | Empty: 18km/h | Full: 17.4km/h |
|---|---|
| Max Speed @ 5% Grade | Empty: 18km/h | Full: 15.2km/h |
| Max Speed @ 10% Grade | Empty: 17.4km/h | Full: 11.2km/h |
| Max Speed @ 15% Grade | Empty: 14.2km/h | Full: 8.5km/h |
| Max Speed @ 20% Grade | Empty: 11.6km/h | Full: 6.2km/h |
| Max Grade Climb Ability | 24.1% @ 5.5km/h |
