Spraymaster
The Spraymaster has been purpose built for trouble free shotcreting operations. With a maximum pumping output of 45m3/hr, (30m3/hr whilst shotcreting) and optional bredle chemical pump, the Jacon Spraymaster will enable you to complete jobs to the highest quality. The proximity sensors allow for quick swingtube action, supplying constant flow to the shotcrete nozzle.
Key features
- Water Pump with Stainless Steel Water Tanks
- High Pressure Water Pump with Lance
- Spot Light on Hopper
- 4 Channel Remote Control
- Variable Displacement Piston Pump
- Independent Hydraulic Circuit for Auxillaries
- Standard LED Road Lighting
- Drop Down Doors on Side of Unit
You must be logged in to post a review.
Related products
-
Transmix 6000 Shotcrete Combo
Read moreThe unit is set up for a “one man” operation – the bowl automatically discharges to keep the hopper filled...
View product -
JPV3 Personnel Vehicle
Read moreThe Jacon 18 Person Personnel Vehicle is a robust personnel carrier purpose built to transport personnel into harsh underground mining...
View product -

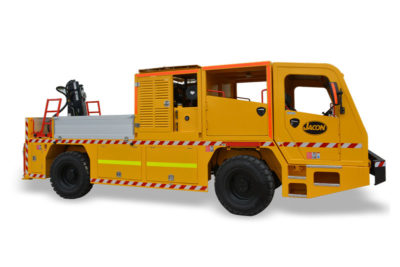

JSV3-PV8 Service Vehicle
Read moreThe Jacon Personnel & Service Vehicle is a unique and reliable utility vehicle, with capabilities of transporting 8 personnel underground...
View product -
Maxijet X3 – HV
Read moreThe Jacon Maxijet X3 is a robust mid-sized shotcrete rig designed and built for tramming in harsh conditions, steep inclines...
View product
Specifications
| Pump | 160mm cylinders with 1100mm stroke S-Valve, swingtube design concrete transfer valve in hopper All cylinders are hard chromed |
|---|
Power Unit
| PTO | Standard |
|---|---|
| 6 Cylinder Engine | Perkins1006 |
| Hydraulic Pressure Max | 250 Bar |
|---|---|
| Rated Output | 45 Cubic Metres / Hour |
| Line Pressure Max | 70 Bar |
| Vertical Reach | 40 Metres |
| Horizontal Reach | 150 Metres |
| Hopper Capacity | 250 Litres |
| Hopper Outlet | 5 inch |
