Maxijet X3
4 Wheel Drive / 4 Wheel Steer

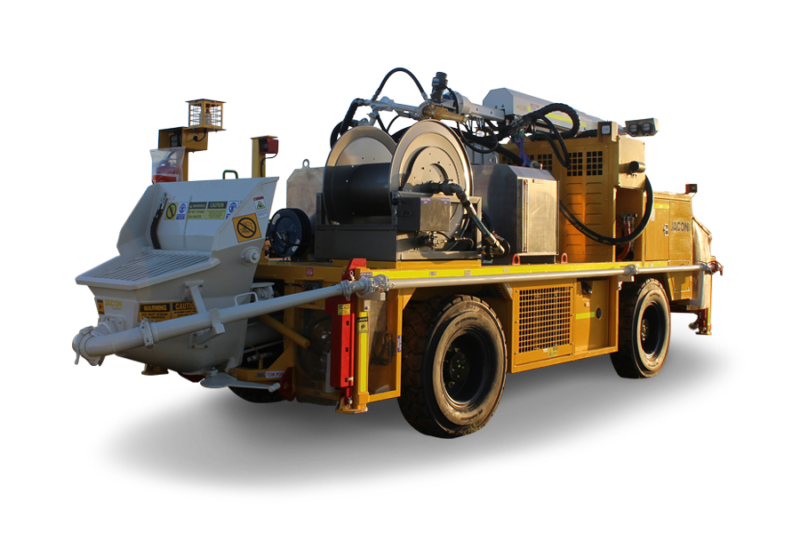

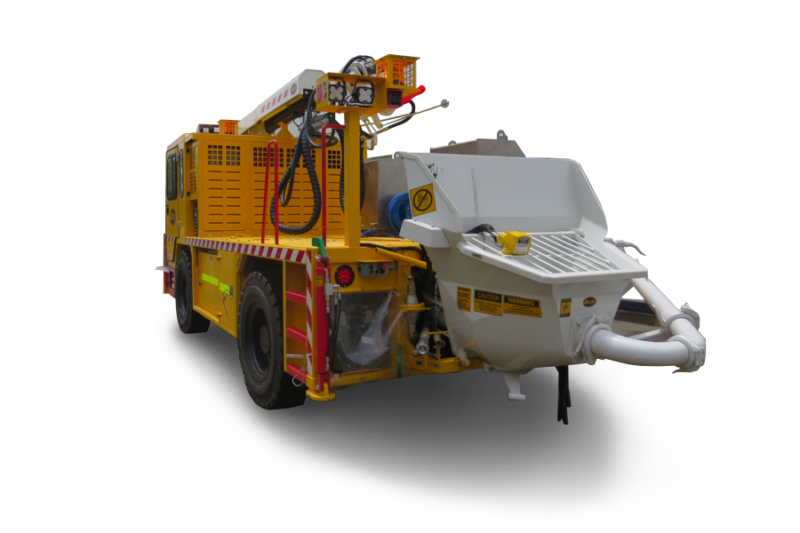

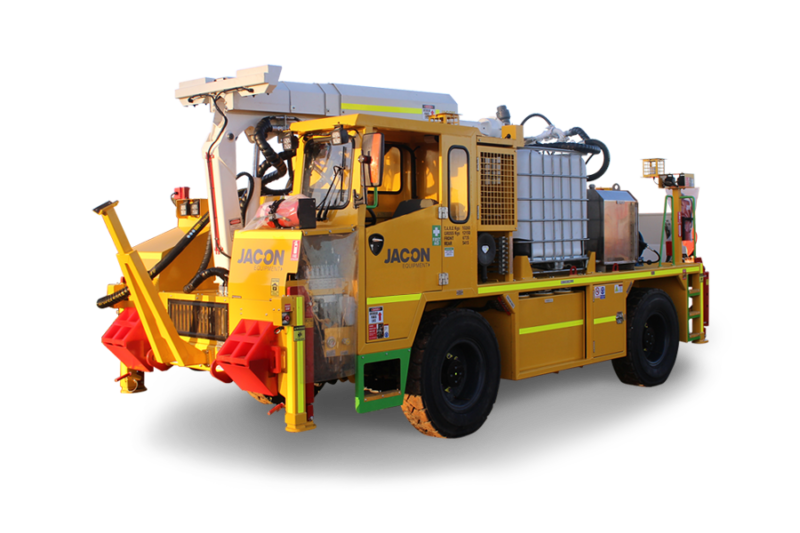

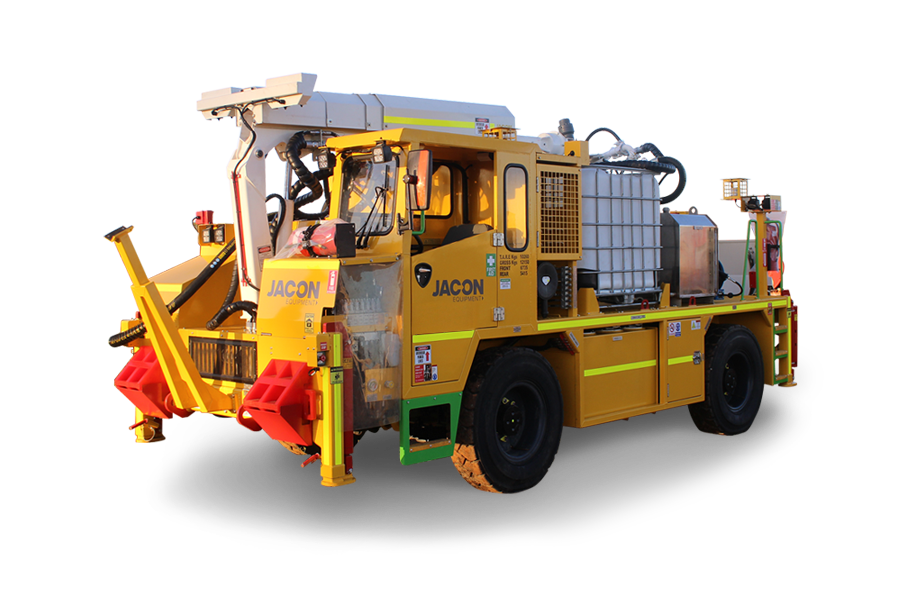

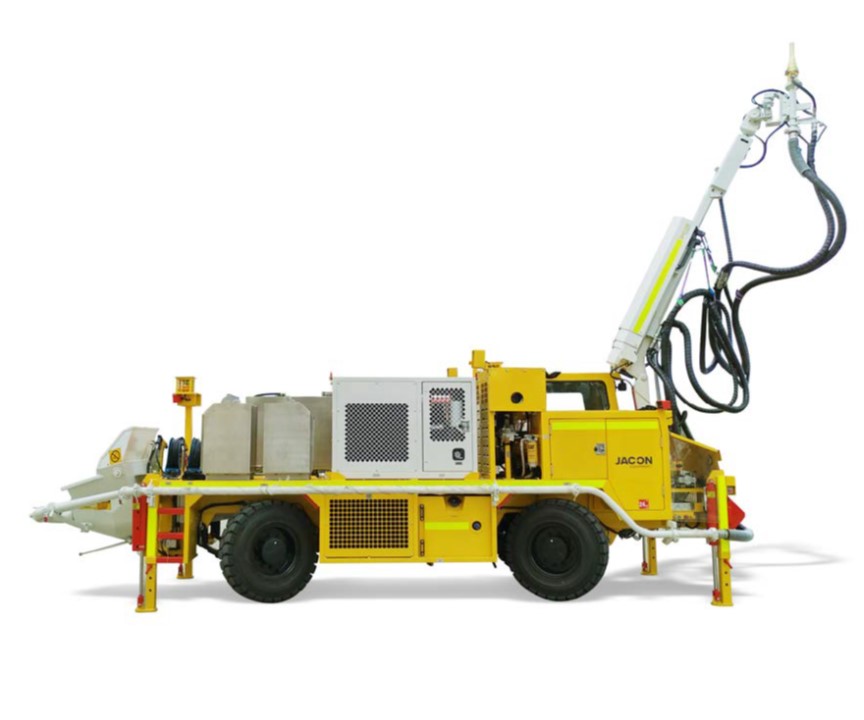

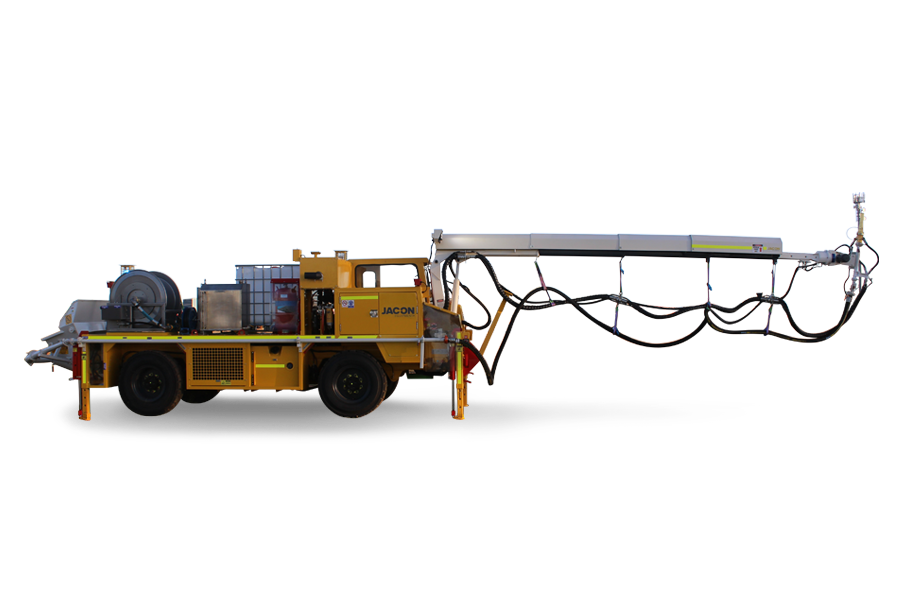

The Jacon Maxijet X3 is a robust mid-sized shotcrete rig designed and built for tramming in harsh conditions, steep inclines and long distance.
Key features

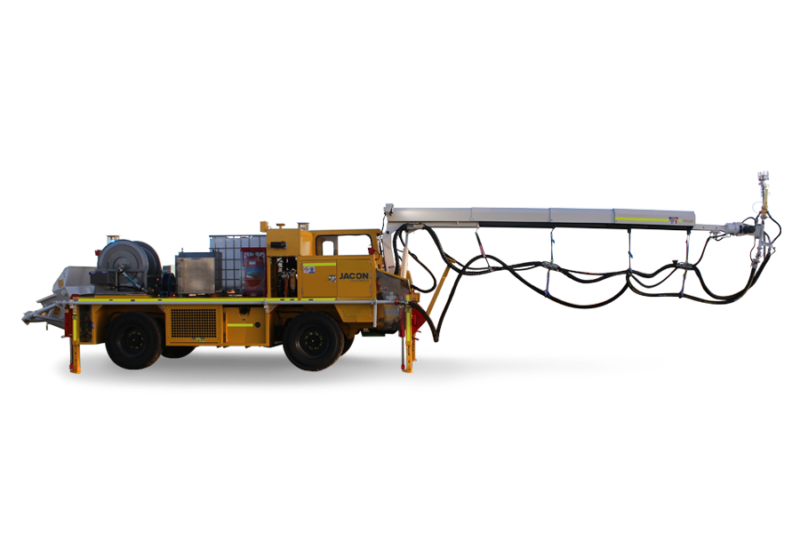

- Hydraulic triple extension slewing boom
- 10 metre reach robotic arm
- Four wheel hydrostatic steering
Benefits
- Durable and built to last harsh underground conditions
- Easy manoeuvrability and short turning radius
- Easy operation
- Consistent results
- Increased productivity
- Cost effective solution
- Safer worksite
Description
4 Wheel Drive / 4 Wheel Steer
You must be logged in to post a review.
Related products
-
Spraymaster
Read moreThe Spraymaster has been purpose built for trouble free shotcreting operations. With a maximum pumping output of 45m3/hr, (30m3/hr whilst...
View product -
Transmix 5000 Cigar
Read moreThe Jacon Transmixer range offers a complete and unique solution to batch mixing and transportation of concrete in mines and...
View product -
Transmix 6000 Shotcrete Combo MKII
Read moreThe unit is set up for a “one man” operation – the bowl automatically discharges to keep the hopper filled...
View product -
Transmix 6000 Shotcrete Combo
Read moreThe unit is set up for a “one man” operation – the bowl automatically discharges to keep the hopper filled...
View product
Specifications
Engine
| Engine | 168kW @ 2200rpm |
|---|
Pump Capacity
| Pump Capacity | 30m3/hour |
|---|

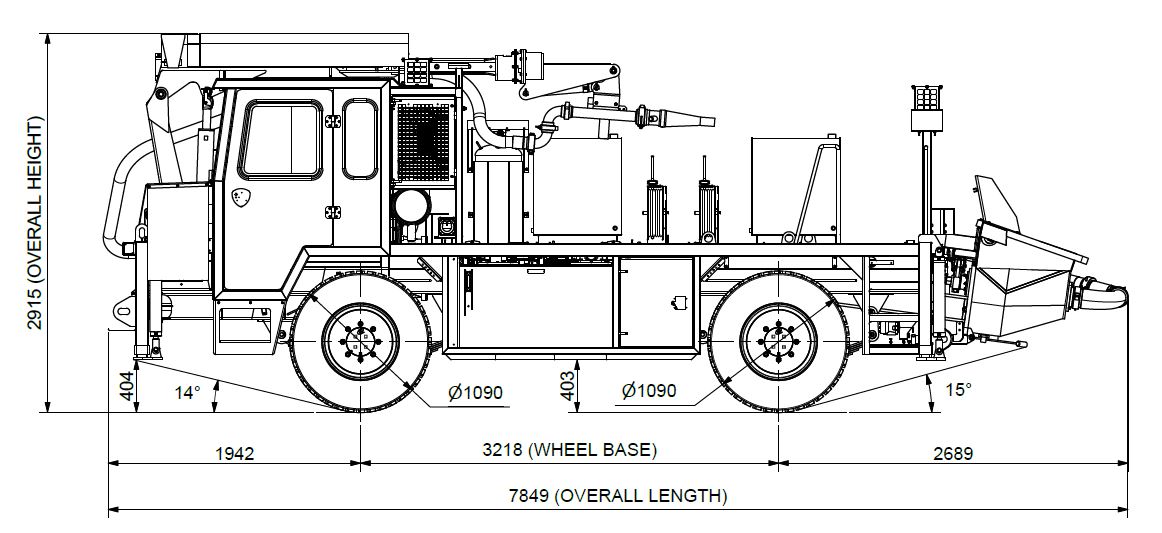

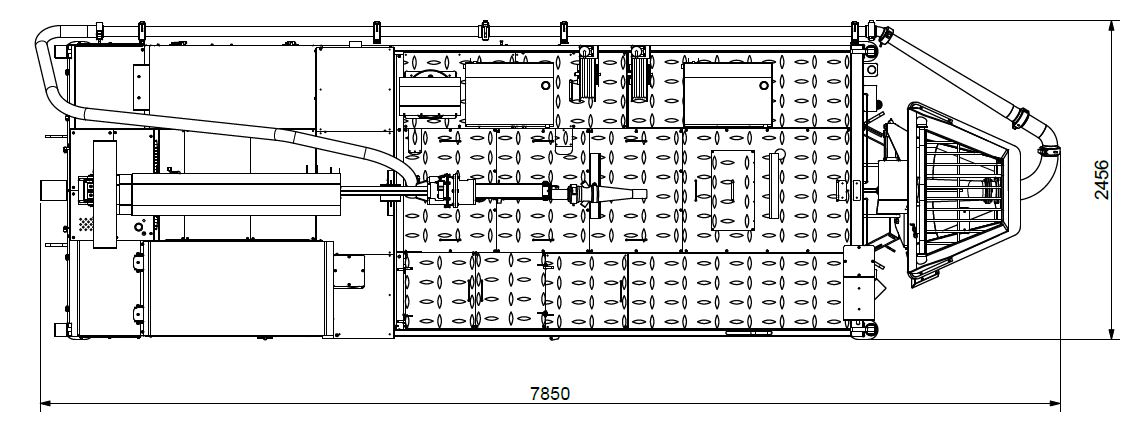

Dimensions
| Length | 7849 |
|---|---|
| Width | 2456 |
| Height | 2915 |
| Total Weight (Empty) | 11,080kgs |
| Total Weight (Full Loaded) | 11,880kgs |
| Steering Type | 4WD/4WS |
Turning Radius
| Inner | R2700 |
|---|---|
| Outer | R6200 |
Drive & Gradeability
| Unloaded | Loaded | |
| Max Speed @ 0% Grade | 20.0km/h | 19.9km/h |
| Max Speed @ 5% Grade | 17.0km/h | 16.7km/h |
| Max Speed @ 10% Grade | 14.7km/h | 14.4km/h |
| Max Speed @ 15% Grade | 13.1km/h | 12.7km/h |
| Max Speed @ 20% Grade | 11.7km/h | 11.4km/h |
| Max Speed @ 25% Grade | 10.7km/h | 10.3km/h |
