Tunneljet E2
4 Wheel Drive / 4 Wheel Steer

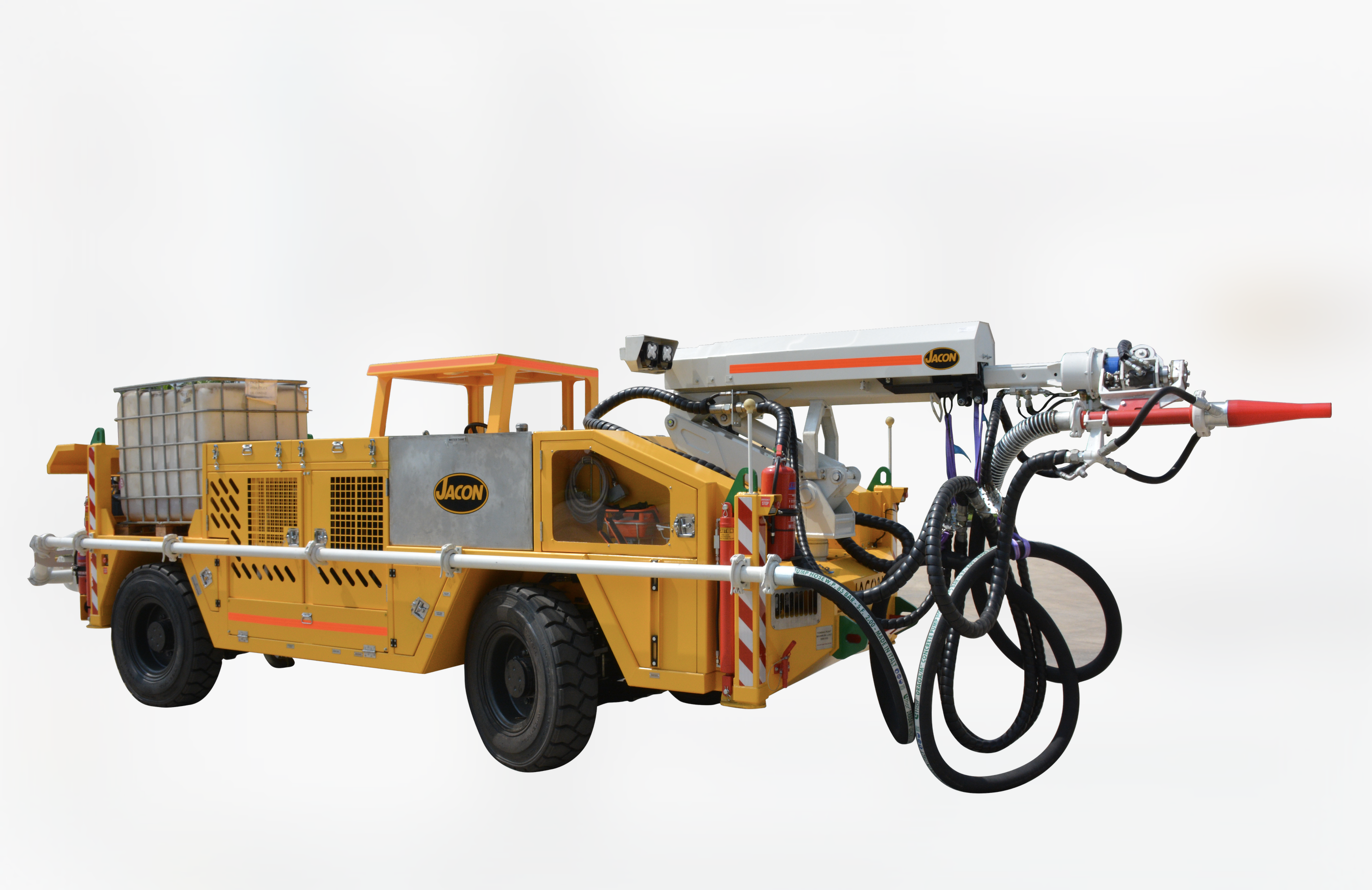

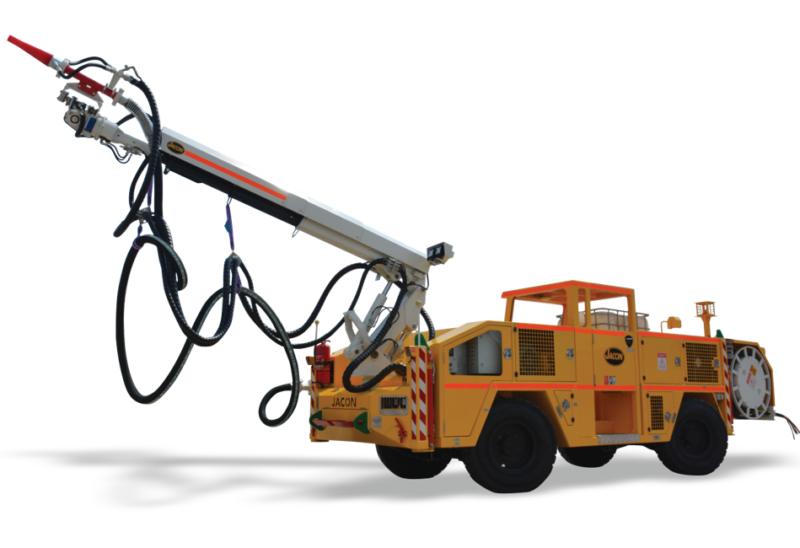

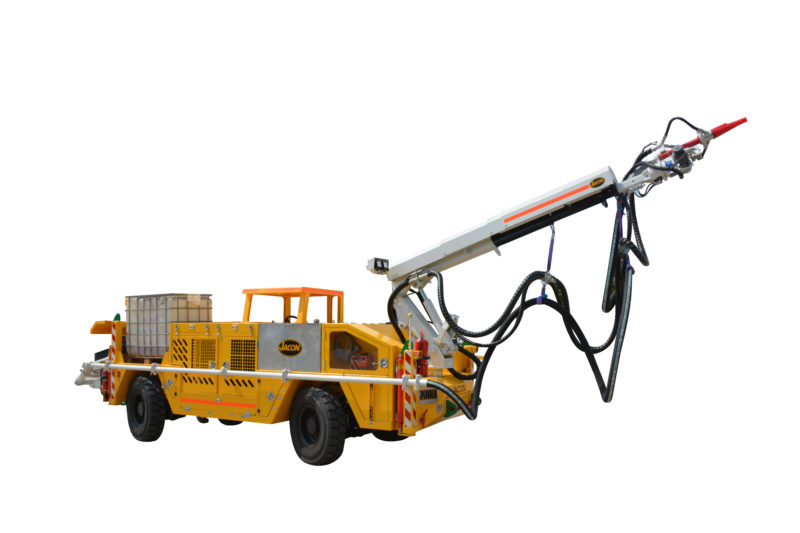

The Jacon Tunneljet E2 is a compact and versatile shotcrete rig purpose-built for the toughest shotcrete applications in small to medium size tunnels.
Key features
- Telescopic boom arm with tilt back boom
- 10 metre reach robotic arm
- Four wheel hydrostatic steering
- Diesel or Electric spraying capabilities
Benefits
- Durable and built to last harsh underground conditions
- Easy manoeuvrability and short turning radius
- Low profile
- Operator friendly
Description
4 Wheel Drive / 4 Wheel Steer
You must be logged in to post a review.
Related products
-
Spraymaster
Read moreThe Spraymaster has been purpose built for trouble free shotcreting operations. With a maximum pumping output of 45m3/hr, (30m3/hr whilst...
View product -
Tunneljet E3
Read moreThe Jacon Tunneljet E3 is a compact and large size shotcrete rig purpose-built for the toughest shotcrete applications in medium...
View product -
Transmix X5
Read moreThe Jacon Transmixer range offers a complete and unique solution to batch mixing and transportation of concrete in mines and...
View product -
JPV3 Personnel Vehicle
Read moreThe Jacon 18 Person Personnel Vehicle is a robust personnel carrier purpose built to transport personnel into harsh underground mining...
View product
Specifications
Engine
| Engine | 73kW @ 2300rpm |
|---|
Pump Capacity
| Pump Capacity | 20m3/hour |
|---|
Drive
| Diesel-Hydraulic | Standard |
|---|---|
| Electric-Hydraulic | Optional |
Dimensions
| Length | 8166 |
|---|---|
| Width | 2503 |
| Height | 2474 |
| Total Weight (Empty) | 13,020kgs |
| Total Weight (Full Loaded) | 13,510kgs |
| Steering Type | 4WD/4WS |
Turning Radius
| Inner | R2288 |
|---|---|
| Outer | R5866 |
Drive & Gradeability
| Unloaded | Loaded | |
| Max Speed @ 0% Grade | 10.0km/h | 9.9km/h |
| Max Speed @ 5% Grade | 8.2km/h | 7.9km/h |
| Max Speed @ 10% Grade | 6.9km/h | 6.6km/h |
| Max Speed @ 15% Grade | 6.0km/h | 5.7km/h |
| Max Speed @ 20% Grade | 5.3km/h | 5.0km/h |
| Max Speed @ 25% Grade | 4.8km/h | 4.5km/h |
