Midjet MK4.5
4 Wheel Drive / Skid Steer

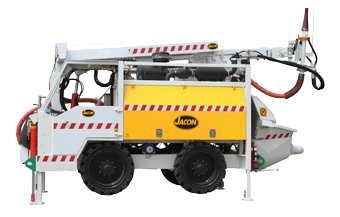

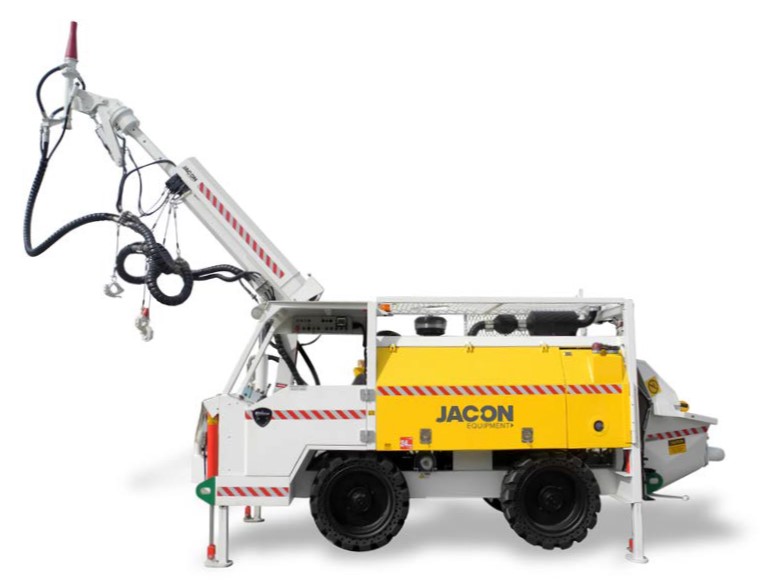

The Jacon Midjet is one of the most unique, compact and self-contained shotcrete rigs of its kind. It is extremely manoeuvrable and capable of being cage transported in one piece or tramming underground.
Key features
- Hydraulic triple extension slewing boom
- 10 metre reach robotic arm
- Skid steer
- Compact size
Benefits
- Excellent manoeuvrability
- Ability to access tight areas where large equipment cannot reach
- Easy operation
Description
4 Wheel Drive / Skid Steer
You must be logged in to post a review.
Related products
-
JSV3 Service Vehicle
Read moreThe Jacon Service Vehicle is a unique and reliable utility vehicle, with capabilities of transporting 4 personnel whilst loaded with...
View product -
JWJ6 Waterjet 12,000
Read moreThe Jacon Waterjet 12,000L has been purpose built to provide a range of applications to the mine in order to...
View product -
JCV3 Cassette Vehicle
Read moreThe Jacon Cassette Vehicle is a robust multi-purpose vehicle designed and built to carry various cassettes to a number of...
View product -
Tunneljet E3
Read moreThe Jacon Tunneljet E3 is a compact and large size shotcrete rig purpose-built for the toughest shotcrete applications in medium...
View product
Specifications
Engine
| Engine | CAT C4.4 | 94kW @ 2300rpm |
|---|
Pump Capacity
| Pump Capacity | 20m3/hour |
|---|
Drive
| Diesel-Hydraulic Drive | Standard |
|---|---|
| Electric-Hydraulic Drive | X |
| Diesel & Electric Drive | X |

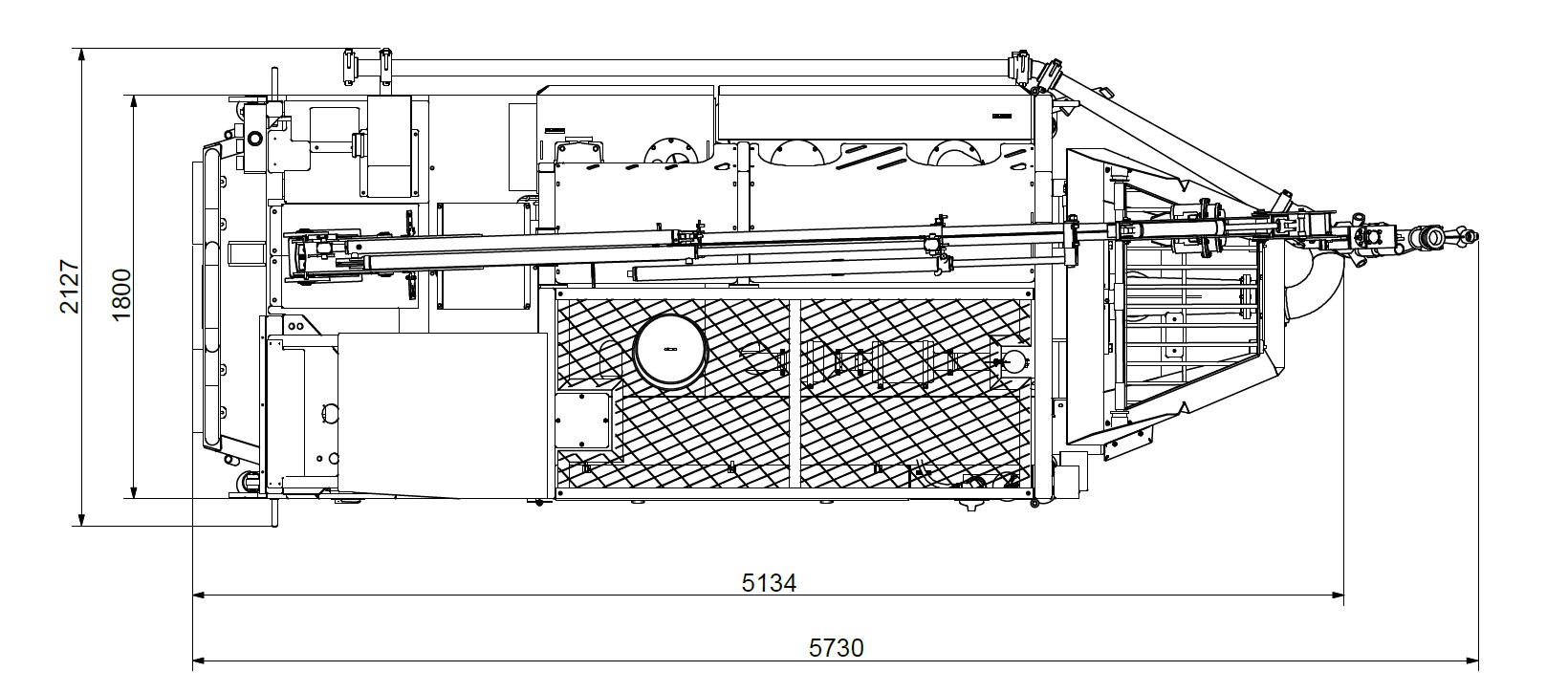

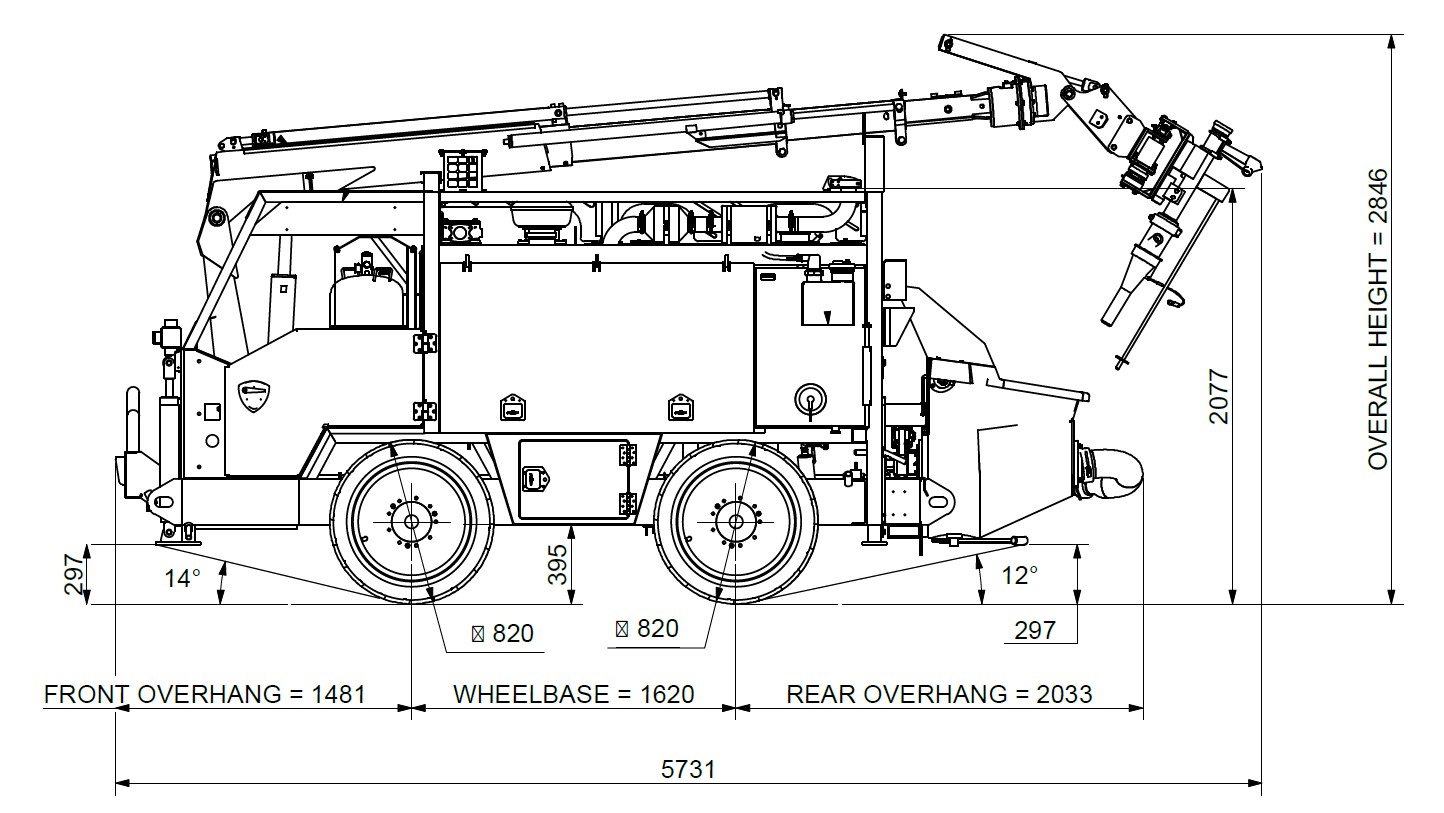

Dimensions
| Length | 5134 |
|---|---|
| Width | 2065 |
| Height | 2846 |
| Total Weight (Empty) | 6,800kgs |
| Total Weight (Full Loaded) | 7,350kgs |
| Steering Type | Skid Steer |
Turning Radius
| Inner | |
|---|---|
| Outer | R3010 |
Drive & Gradeability
| Unloaded | Loaded | |
| Max Speed @ 0% Grade | 14.6km/h | 14.5km/h |
| Max Speed @ 5% Grade | 12.6km/h | 12.4km/h |
| Max Speed @ 10% Grade | 11.0km/h | 10.8km/h |
| Max Speed @ 15% Grade | 9.8km/h | 9.6km/h |
| Max Speed @ 20% Grade | 8.9km/h | 8.6km/h |
| Max Speed @ 25% Grade | 8.2km/h | 7.9km/h |
