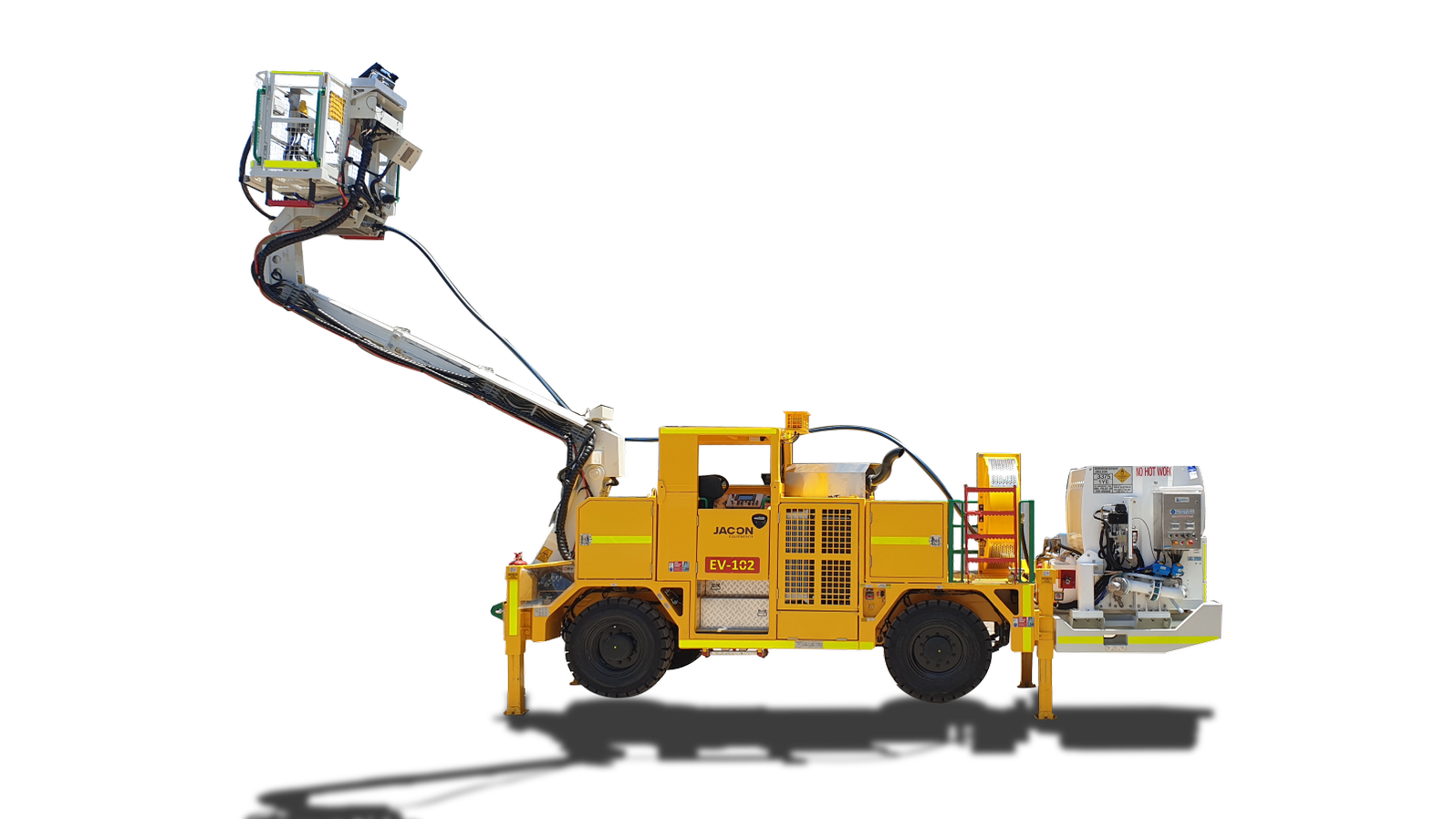

JCU3 Charjet
4 Wheel Drive / 4 Wheel Steer
The Jacon Charjet is a compact, fully integrated charge-up machine purpose built for face and production charging in underground mining and tunnelling applications
Key features
- 7.3 metre basket reach
- Four-wheel hydrostatic steering
- Maintenance friendly design
- Adaptable rear module to suit various explosives modules/providers.
Benefits
- Durable and built to last harsh underground conditions
- Easy manoeuvrability and short turning radius
- Easy operation
- Easy to maintain
- Cost effective solution
Description
4 Wheel Drive / 4 Wheel Steer
You must be logged in to post a review.
Related products
-
Transmix X5
Read moreThe Jacon Transmixer range offers a complete and unique solution to batch mixing and transportation of concrete in mines and...
View product -
Maxijet X3
Read moreThe Jacon Maxijet X3 is a robust mid-sized shotcrete rig designed and built for tramming in harsh conditions, steep inclines...
View product -
JSV3-PV8 Service Vehicle
Read moreThe Jacon Personnel & Service Vehicle is a unique and reliable utility vehicle, with capabilities of transporting 8 personnel underground...
View product -
Transmix 5000 Shotcrete Combo
Read moreThe unit is set up for a “one man” operation – the bowl automatically discharges to keep the hopper filled...
View product
Specifications
Engine
| Engine | 168kW @ 2200rpm |
|---|
Dimensions
| Length | 9111 |
|---|---|
| Width | 2332 |
| Height | 3134 |
| Gross Weight | 15,700kgs |
| Steering Type | 4WD/4WS |

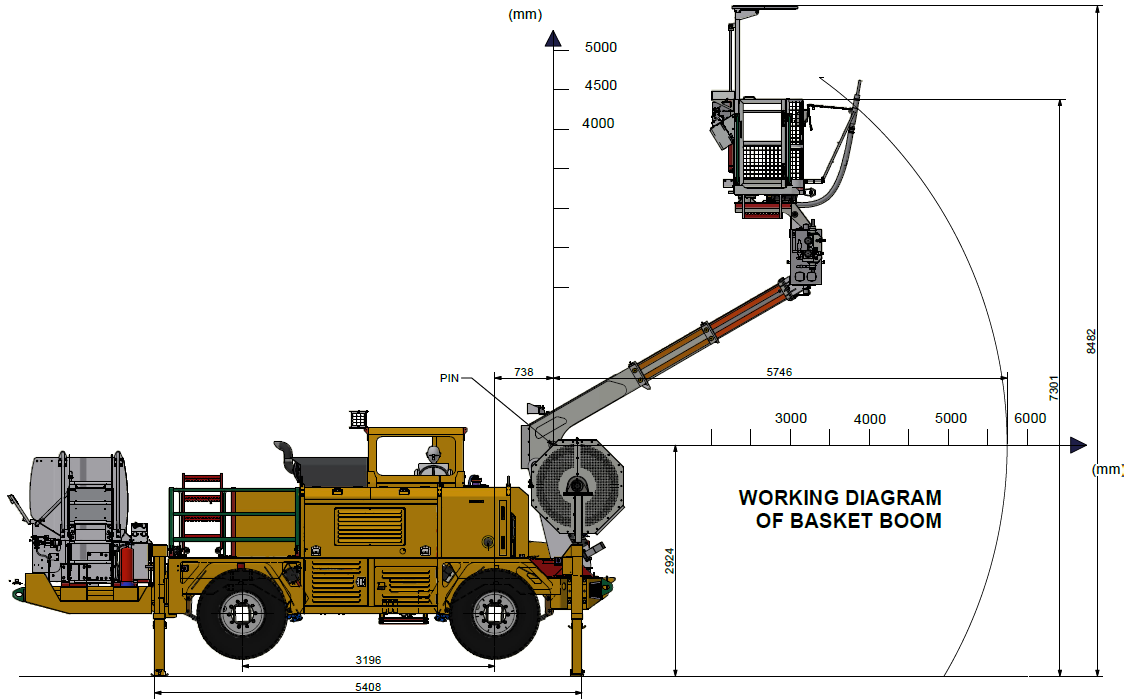

Boom & Basket
| Reach | 7.3m |
|---|---|
| Weight Capacity | 275kgs |

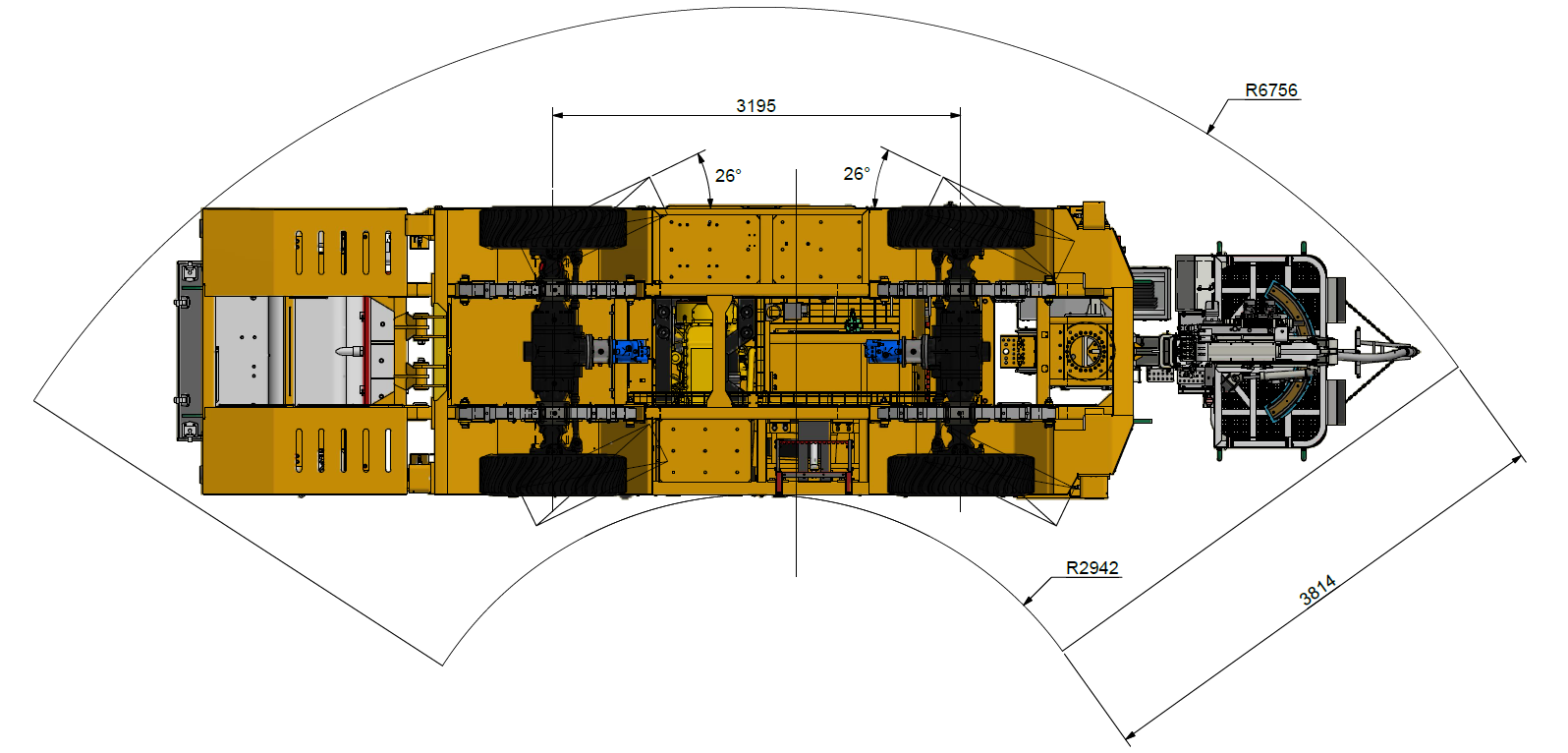

Turning Radius
| Inner | 2942 |
|---|---|
| Outer | 6756 |
