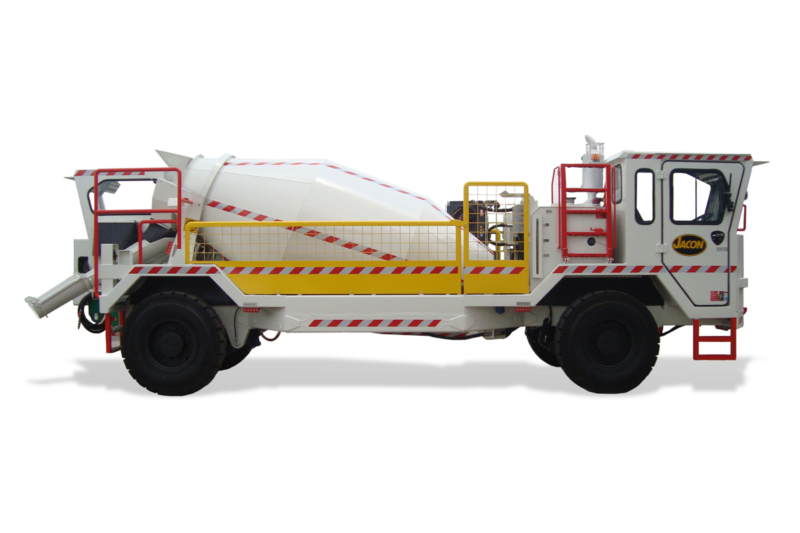

Transmix X5
5m3 Capacity / 4 Wheel Drive / 4 Wheel Steer
The Jacon Transmixer range offers a complete and unique solution to batch mixing and transportation of concrete in mines and tunnels. Compact and low profile, the Transmix X5 is a perfect solution for smaller, narrow tunnels, whilst maintaining capabilities of performing in larger, tougher jobs.
Key features
- Dual cabin
- Low profile
- Hydrostatic transmission
Benefits
- Drive in and out without turning the machine around.
- Manoeuvrable
- Ability to handle inclines with ease even at full load.
Description
5m3 Capacity / 4 Wheel Drive / 4 Wheel Steer
You must be logged in to post a review.
Related products
-
Transmix 6000 Shotcrete Combo
Read moreThe unit is set up for a “one man” operation – the bowl automatically discharges to keep the hopper filled...
View product -
JSV3-PV8 Service Vehicle
Read moreThe Jacon Personnel & Service Vehicle is a unique and reliable utility vehicle, with capabilities of transporting 8 personnel underground...
View product -
T60 Truck Mounted Concrete Pump
Read moreJacon’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product -
Tunneljet E2
Read moreThe Jacon Tunneljet E2 is a compact and versatile shotcrete rig purpose-built for the toughest shotcrete applications in small to...
View product
Specifications
Engine
| Engine | 205kW @ 2200rpm |
|---|
Drum Capacity
| 5m3 bowl |
|---|
Drive
| Diesel-Hydraulic Drive | Standard |
|---|---|
| Electric-Hydraulic Drive | X |
| Diesel & Electric Drive | X |
Dimensions
| Length | 8564 |
|---|---|
| Width | 2160 |
| Height | 2749 |
| Total Weight (Empty) | 12,300kgs |
| Total Weight (Full Loaded) | 24,300kgs |
| Steering Type | 4WD/4WS |
Turning Radius
| Inner | R4534 |
|---|---|
| Outer | R7883 |
Drive & Gradeability
| Unloaded | Loaded | |
| Max Speed @ 0% Grade | 25.0km/h | 22.0km/h |
| Max Speed @ 5% Grade | 18.4km/h | 15.0km/h |
| Max Speed @ 10% Grade | 16.6km/h | 11.0km/h |
| Max Speed @ 15% Grade | 13.0km/h | 8.0km/h |
| Max Speed @ 20% Grade | 11.0km/h | 6.7km/h |
| Max Speed @ 25% Grade | 9.2km/h | |
| Max Grade Climb Ability | Up: 14' | Down: 17' |
