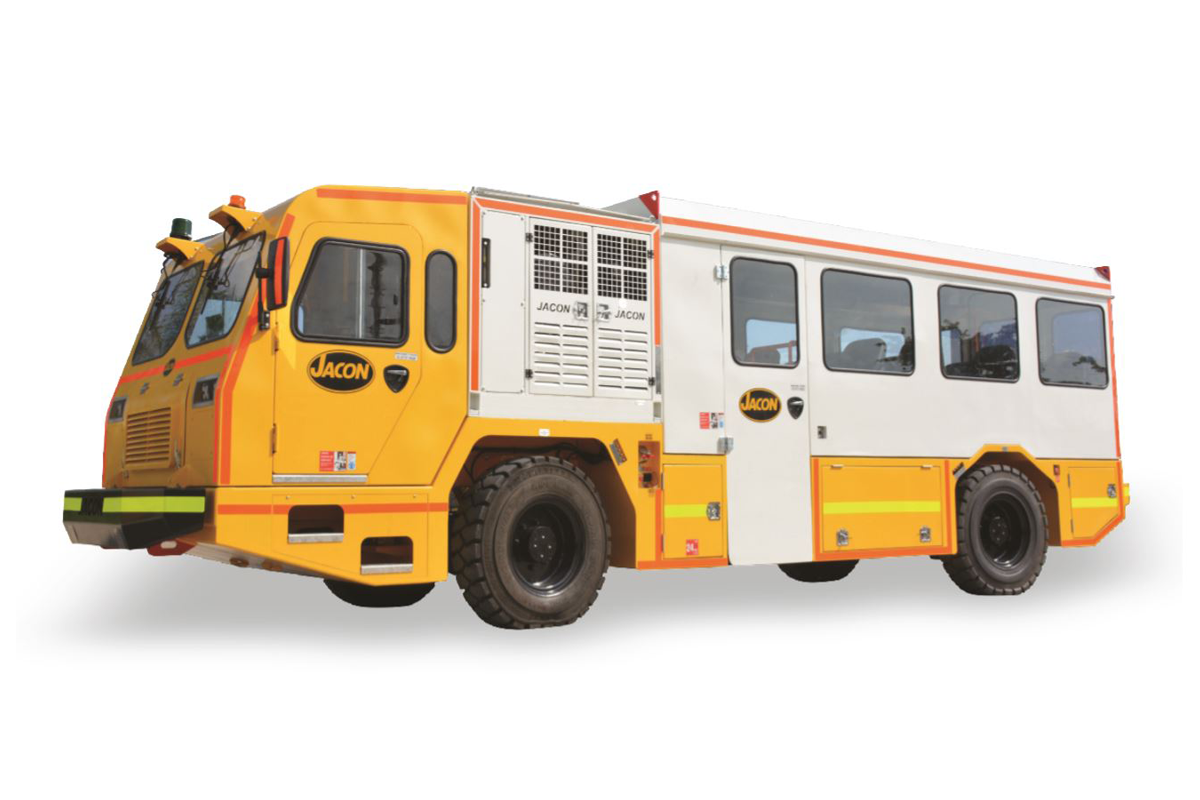

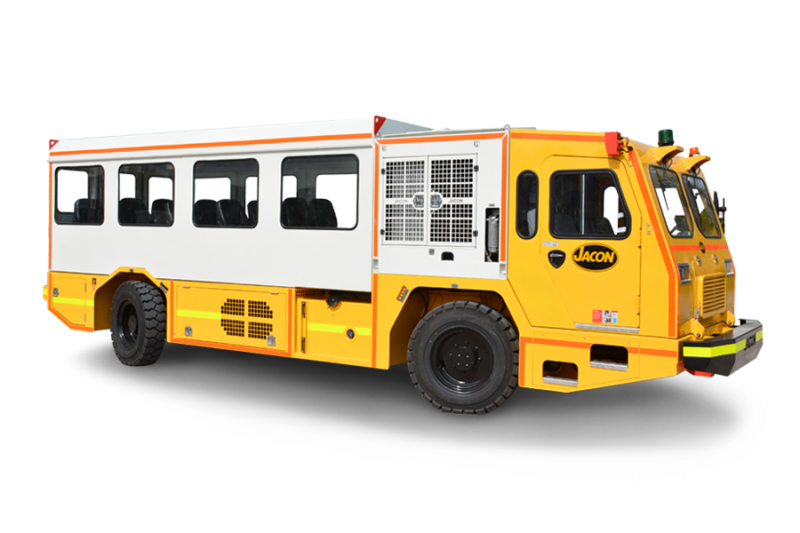

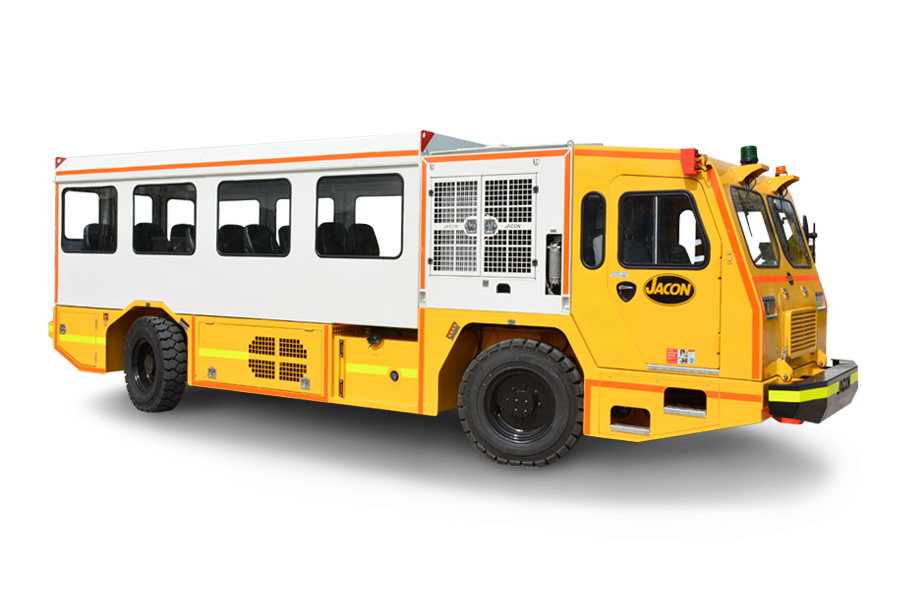

JPV3 Personnel Vehicle
The vehicle of choice to transport your personnel underground.
The JACON 18 Person Personnel Vehicle is a robust personnel carrier purpose built to transport personnel into harsh underground mining conditions.
Key features
- Four Person Front Cabin
- 14 Person Rear Cabin (Greater Capacity Available)
- Combination Leaf & Airbag Suspension
- FOPS/ROPS Cabin; Front and Rear
- Easily Maintainable
- 4WD/4WS
Benefits
- Personnel Module Carries up to 18 people
- Suspension allows for steady rear load
- Durable and built to last harsh underground conditions
- Easy manoeuvrability and short turning radius
- Increased productivity
- Cost effective solution
- Safer worksite
- Numerous safety features
Description
The vehicle of choice to transport your personnel underground.
You must be logged in to post a review.
Related products
-
JWJ6 Waterjet 12,000
Read moreThe JACON Waterjet 12,000L has been purpose built to provide a range of applications to the mine in order to...
View product -
JSV3 Cabolt Service Vehicle
Read moreThe JACON Cabolt Service Vehicle is a unique and reliable utility vehicle, with capabilities of transporting 4 personnel whilst loaded...
View product -
T60 Truck Mounted Concrete Pump
Read moreJACON’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product -
Tunneljet E2
Read moreThe JACON Tunneljet E2 is a compact and versatile shotcrete rig purpose-built for the toughest shotcrete applications in small to...
View product
Specifications
Engine
| Engine | 104kW @ 2200RPM |
|---|
Carrying Capacity
| Carrying Capacity (Personnel) | 18 people |
|---|
Drive
| Diesel-Hydraulic Drive | Standard |
|---|---|
| Electric-Hydraulic Drive | X |
| Diesel & Electric Drive | X |

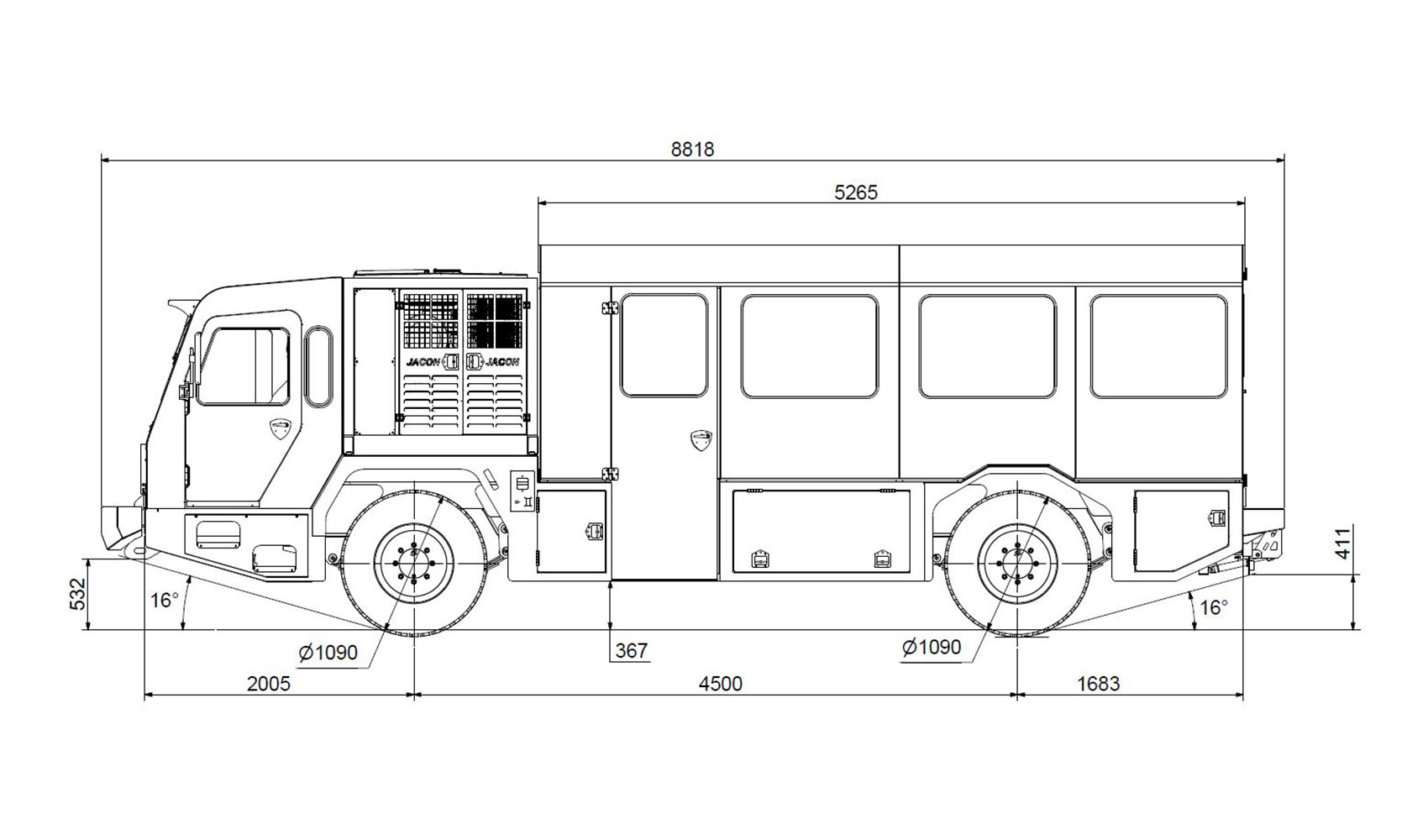

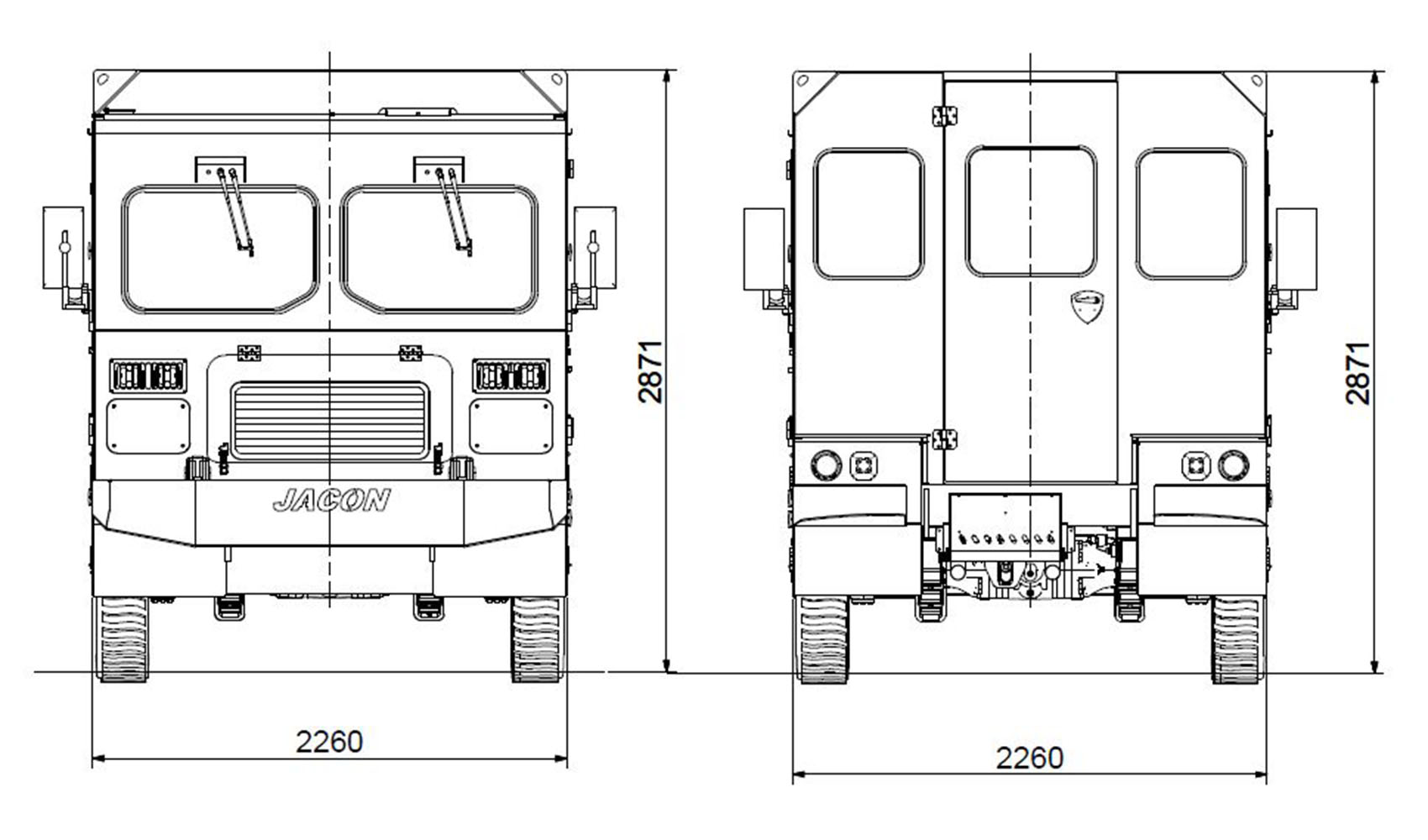

Dimensions
| Length | 8818 |
|---|---|
| Width | 2260 |
| Height | 2871 |
| Total Weight (Empty) | 7000 kgs |
| Total Weight (Full Loaded) | 10,600 kgs |
| Steering Type | 4WD/4WS |

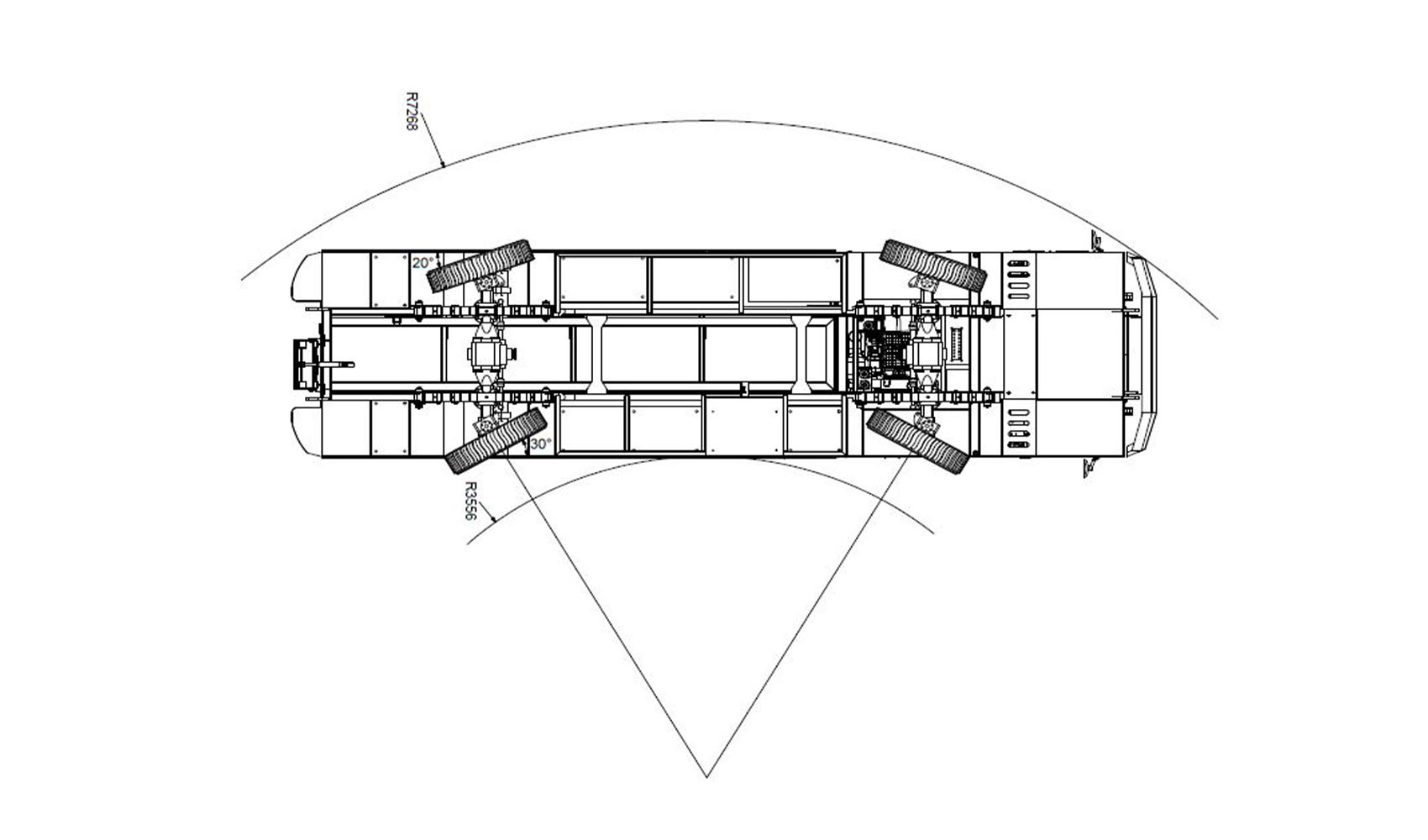

Turning Radius
| Inner | R3556 |
|---|---|
| Outer | R7268 |
Drive & Gradeability
| Max Speed @ 0% Grade | 56km/hr |
|---|---|
| Max Speed @ 5% Grade | 32km/hr |
| Max Speed @ 10% Grade | 23km/hr |
| Max Speed @ 15% Grade | 18km/hr |
| Max Speed @ 20% Grade | |
| Max Speed @ 25% Grade | |
| Max Grade Climb Ability | 16% @ 16km/h |
Always a light at the end of the tunnel.
Arrange A Call Back From A JACON Expert
Complete the form below and we’ll call you asap or ring +61 2 6884 4408 and we’ll put you in touch with the right person for your job.
