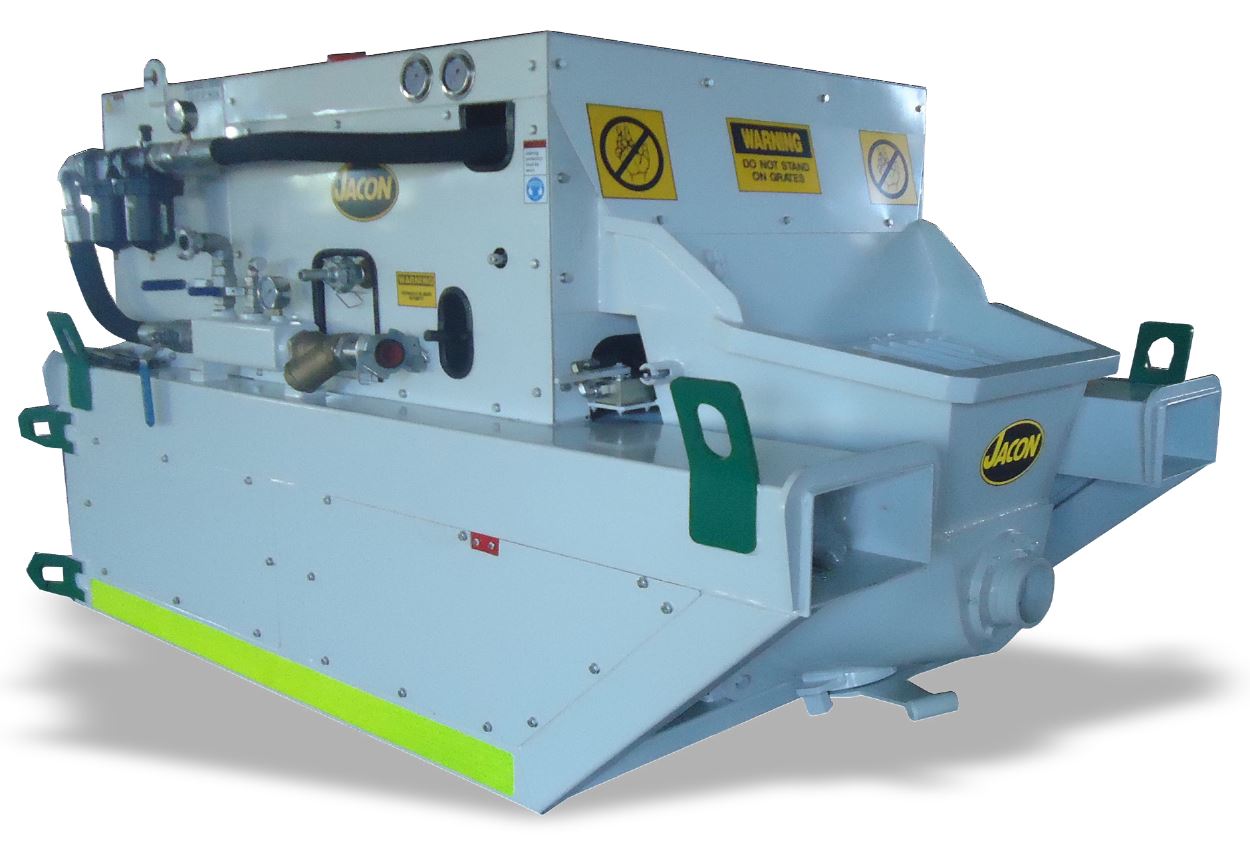

S42 Air Driven Skid Pump
AIR DRIVEN | SKID MOUNTED
Key features
- Coal compliant components
- MDG1 compliant hydraulic hosing
- Full reverse flow
- Air over hydraulic system
- 4" Victaulic outlet
- Centralised Greasing
Description
AIR DRIVEN | SKID MOUNTED
You must be logged in to post a review.
Related products
-
JSV3-PV8 Service Vehicle
Read moreThe Jacon Personnel & Service Vehicle is a unique and reliable utility vehicle, with capabilities of transporting 8 personnel underground...
View product -
JPV3 Personnel Vehicle
Read moreThe Jacon 18 Person Personnel Vehicle is a robust personnel carrier purpose built to transport personnel into harsh underground mining...
View product -
MaxiJet MX3
Read moreThe Maxijet MX3 is a robust and reliable four-wheel drive, four-wheel steer machine with a hydrostatic transmission and diesel engine,...
View product -
JCU3 Charjet
Read moreThe Jacon Charjet is a compact, fully integrated charge-up machine purpose built for face and production charging in underground mining...
View product
Specifications
| Pump | 100mm hard chromed concrete cylinders with 415mm stroke. S-Valve, swingtube design concrete transfer valve in hopper with 100mm Outlet |
|---|---|
| Power Unit | 14kW Air Motor |
| Hydraulic Pressure Max | 170 Bar |
| Rated Output | 0-5 Cubic Metres / Hour |
| Line Pressure Max | 40 Bar |
| Vertical Reach | 25 Metres |
| Horizontal Reach | 100 Metres |
