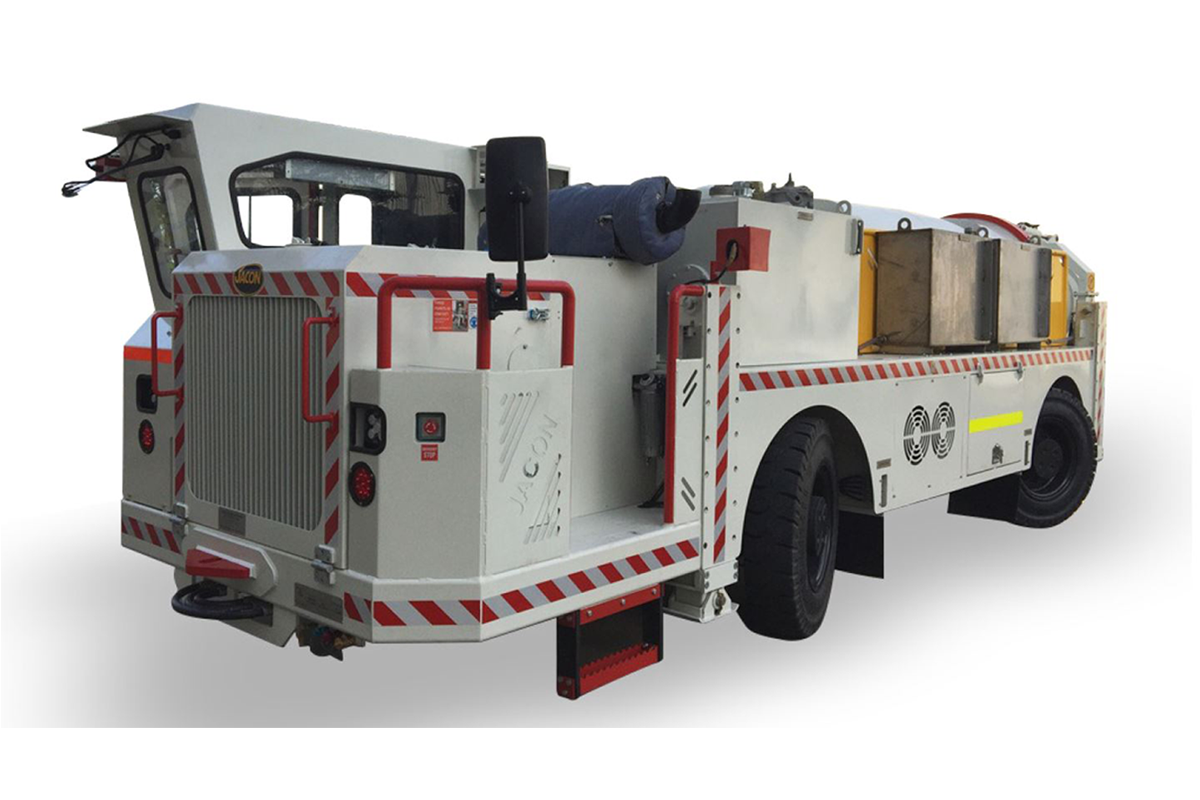

Transmix 5000 Cigar
5m3 Capacity / 4 Wheel Drive / 4 Wheel Steer / Dual Cabins
The Jacon Transmixer range offers a complete and unique solution to batch mixing and transportation of concrete in mines and tunnels. Compact and low profile, this Tranmix Cigar is a perfect solution for smaller, narrow tunnels, whilst maintaining capabilities of performing in larger, tougher jobs.
Key features
- Dual cabin
- Low profile
- Cigar mixer
- Hydrostatic transmission
Benefits
- Drive in and out without turning the machine around.
- Manoeuvrable
- Ability to handle inclines with ease even at full load.
Description
5m3 Capacity / 4 Wheel Drive / 4 Wheel Steer / Dual Cabins
You must be logged in to post a review.
Related products
-
Midjet MK4.5
Read moreThe Jacon Midjet is one of the most unique, compact and self-contained shotcrete rigs of its kind. It is extremely...
View product -
Maxijet X3
Read moreThe Jacon Maxijet X3 is a robust mid-sized shotcrete rig designed and built for tramming in harsh conditions, steep inclines...
View product -
JCU3 Charjet
Read moreThe Jacon Charjet is a compact, fully integrated charge-up machine purpose built for face and production charging in underground mining...
View product -
Transmix 6000 Shotcrete Combo
Read moreThe unit is set up for a “one man” operation – the bowl automatically discharges to keep the hopper filled...
View product
Specifications
Engine
| Engine | 205kW @ 2200rpm |
|---|
Drum Capacity
| Drum Capacity | 5m3 bowl |
|---|
Drive
| Diesel-Hydraulic Drive | Standard |
|---|---|
| Electric-Hydraulic Drive | X |
| Diesel & Electric Drive | X |

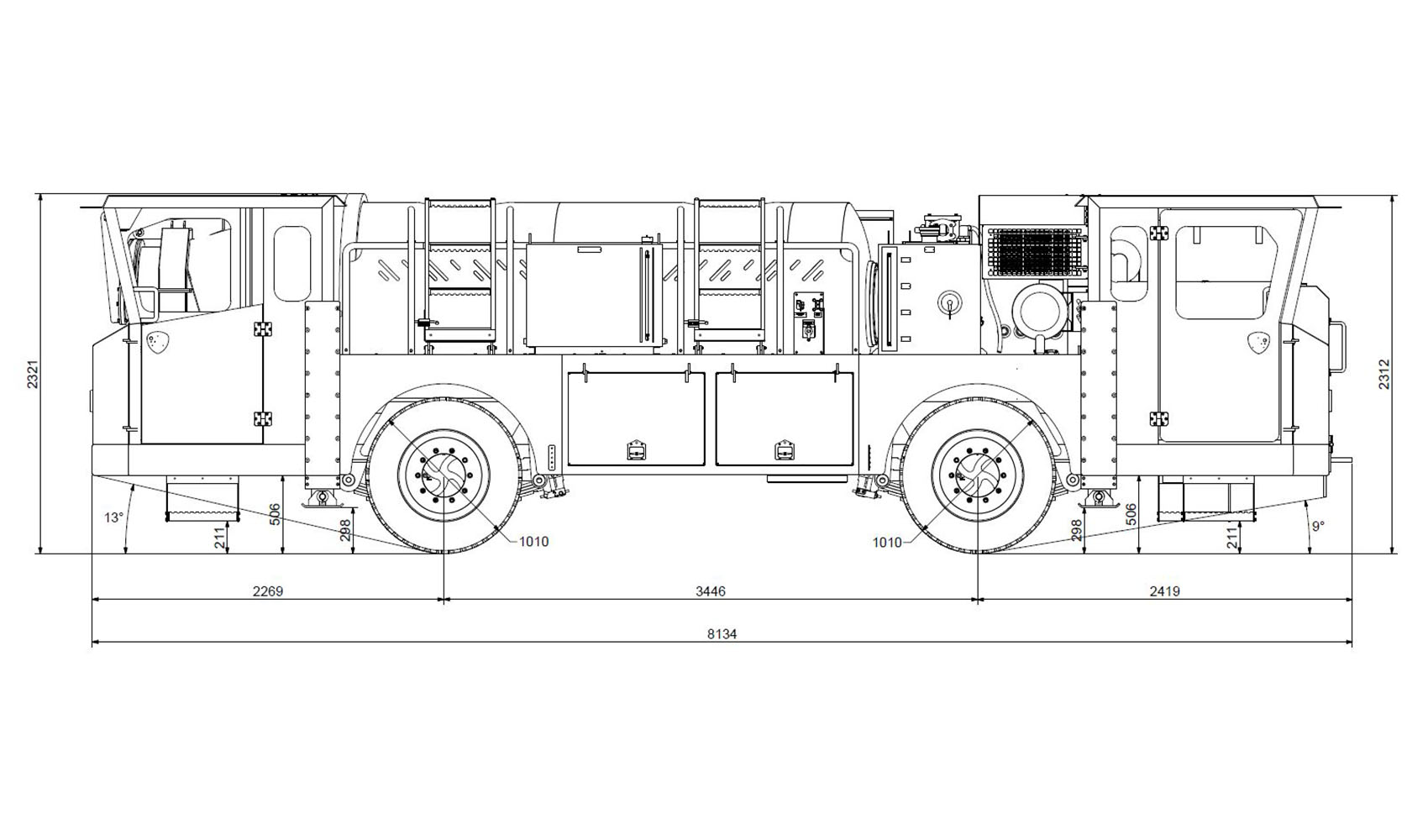

Dimensions
| Length | 8134 |
|---|---|
| Width | 2288 |
| Height | 2321 |
| Total Weight (Empty) | 12,370kgs |
| Total Weight (Full Loaded) | 24,870kgs |
| Steering Type | 4WD/4WS |
Turning Radius
| Inner | R2850 |
|---|---|
| Outer | R6600 |
Drive & Gradeability
| Max Speed @ 0% Grade | Empty: 25km/h | Full: 22km/h |
|---|---|
| Max Speed @ 5% Grade | Empty: 18.4km/h | Full: 15km/h |
| Max Speed @ 10% Grade | Empty: 16.6km/h | Full: 11km/h |
| Max Speed @ 15% Grade | Empty: 13km/h | Full: 8km/h |
| Max Speed @ 20% Grade | Empty: 11km/h | Full: 6.7km/h |
| Max Speed @ 25% Grade | Empty: 9.2km/h | Full: 5.9km/h |
| Max Grade Climb Ability | Full Load: 29% @ 4.7km/h |
