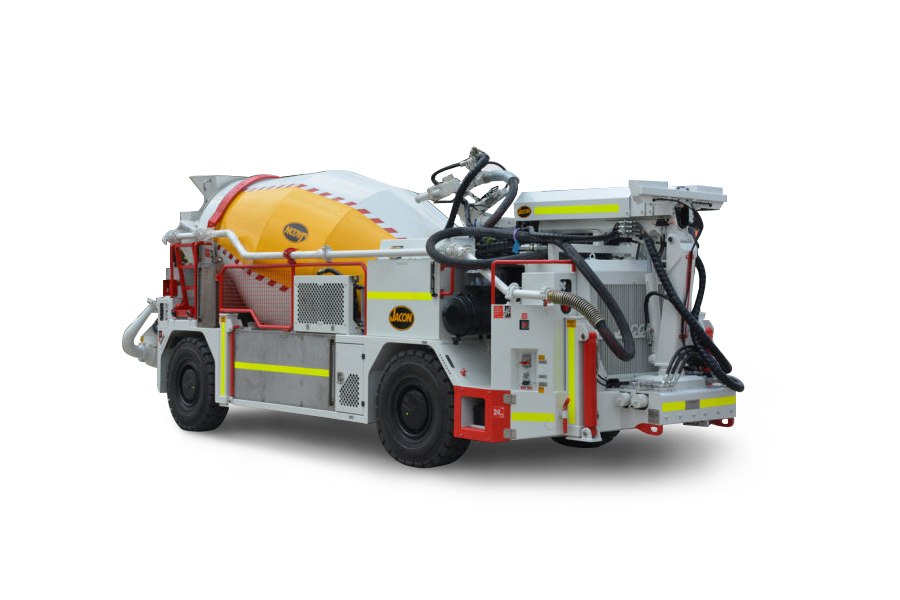

Transmix 6000 Shotcrete Combo
4 Wheel Drive / 4 Wheel Steer
The unit is set up for a “one man” operation – the bowl automatically discharges to keep the hopper filled to a set / predetermined height so the operator can concentrate on the spraying of the shotcrete and control of the boom and nozzle functions.
Key features
- One Man Operation
- Autofill
- Dual Cabin
Benefits
- One piece of capital equipment as opposed to two
- Reduction in vehicle interaction underground
- Reduced spare part consumption
- Reduction in maintenance costs
- Reduction is operator personnel costs
- Reduction in training costs
- Reduction in time to setup (15 minute setup time)
- Less material wastage
- Reduces stress on mines ventilation system
Description
4 Wheel Drive / 4 Wheel Steer
You must be logged in to post a review.
Related products
-
JSV3-PV8 Service Vehicle
Read moreThe Jacon Personnel & Service Vehicle is a unique and reliable utility vehicle, with capabilities of transporting 8 personnel underground...
View product -
Transmix 5000 Cigar
Read moreThe Jacon Transmixer range offers a complete and unique solution to batch mixing and transportation of concrete in mines and...
View product -
MaxiJet MX3 MKII
Read moreThe Maxijet MX3-MKII has been upgraded and redesigned with ease of use in mind. The Maxijet MX3-MKII has three different...
View product -
JSV3 Service Vehicle
Read moreThe Jacon Service Vehicle is a unique and reliable utility vehicle, with capabilities of transporting 4 personnel whilst loaded with...
View product
Specifications
Engine
| Engine | 205kW @ 2200 RPM |
|---|
Pump Capacity / Drum Capacity
| Pump Capacity | 30m3 per hour |
|---|---|
| Drum Capacity | 6m3 bowl |
Drive
| Diesel-Hydraulic Drive | Standard |
|---|---|
| Electric-Hydraulic Drive | X |
| Diesel & Electric Drive | X |
Dimensions
| Length | 8489 |
|---|---|
| Width | 2552 |
| Height | 3090 |
| Total Weight (Empty) | 16,145 kgs |
| Total Weight (Full Loaded) | 30,645 kgs |
| Steering Type | 4WD / 4WS |
Turning Radius
| Inner | R3636 |
|---|---|
| Outer | R7240 |
Drive & Gradeability
| Max Speed @ 0% Grade | Empty: 19.9km/h | Full: 18.6km/h |
|---|---|
| Max Speed @ 5% Grade | Empty: 17.2km/h | Full: 9.5km/h |
| Max Speed @ 10% Grade | Empty: 13.7km/h | Full: 7.5km/h |
| Max Speed @ 15% Grade | Empty: 11.8km/h | Full: 6.5km/h |
| Max Speed @ 20% Grade | Empty: 8.6km/h | Full: 5.9km/h |
| Max Speed @ 25% Grade | Empty: 6.4km/h | Full: 5.3km/h |
| Max Grade Climb Ability | 26.59% @ 4.7km/h |
