Maxijet X3 – HV
Electric Operation / 4 Wheel Drive / 4 Wheel Steer

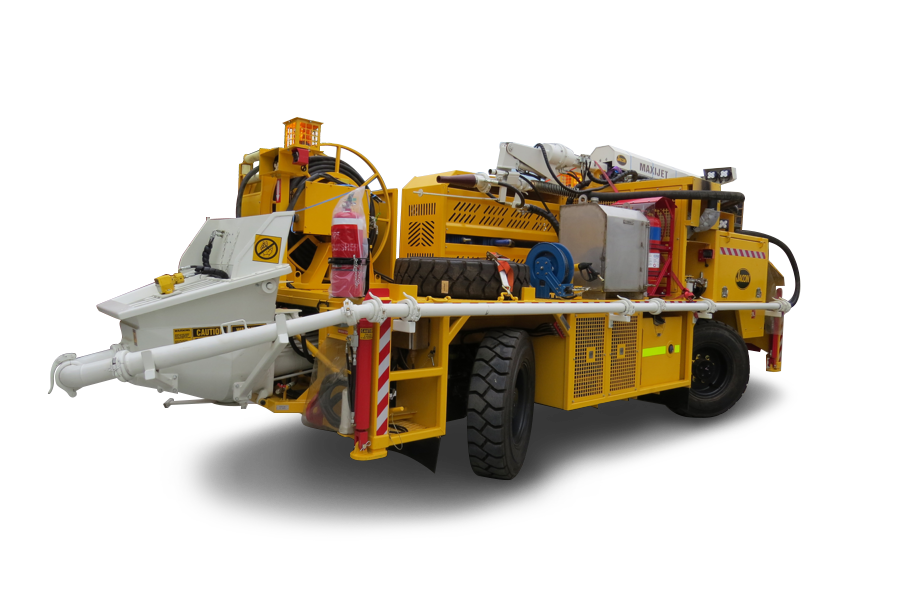

The JACON Maxijet X3 is a robust mid-sized shotcrete rig designed and built for tramming in harsh conditions, steep inclines and long distance.
Key features
- Hydraulic triple extension slewing boom
- 10 metre reach robotic arm
- Four wheel hydrostatic steering
- Diesel or High voltage Electric spraying
Benefits
- Reduced height at working face with electric operation
- Reduced diesel particulates underground
- Does not require mine air to spray
- Durable and built to last harsh underground conditions
- Easy manoeuvrability and short turning radius
- Easy operation
- Consistent results
- Increased productivity
- Cost effective solution
- Safer worksite
Description
Electric Operation / 4 Wheel Drive / 4 Wheel Steer
You must be logged in to post a review.
Related products
-
T60 Truck Mounted Concrete Pump
Read moreJACON’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product -
Spraymaster
Read moreThe Spraymaster has been purpose built for trouble free shotcreting operations. With a maximum pumping output of 60m3/hr, (30m3/hr whilst...
View product -
JSV3-PV8 Service Vehicle
Read moreThe JACON Personnel & Service Vehicle is a unique and reliable utility vehicle, with capabilities of transporting 8 personnel underground...
View product -
Tunneljet E2
Read moreThe JACON Tunneljet E2 is a compact and versatile shotcrete rig purpose-built for the toughest shotcrete applications in small to...
View product
Specifications
Engine
| Engine | 168kW @ 2200rpm |
|---|
Pump Capacity
| Pump Capacity | 30m3/hour |
|---|
Operation
| Operation | Electric |
|---|
Drive
| Diesel-Hydraulic Drive | Standard |
|---|---|
| Electric-Hydraulic Drive | Optional |
| Diesel & Electric Drive | X |
Dimensions
| Length | 7763 |
|---|---|
| Width | 2252 |
| Height | 2918 |
| Total Weight (Empty) | 10,300 kgs |
| Total Weight (Full Loaded) | 13,700 kgs |
| Steering Type | 4WD/4WS |
Turning Radius
| Inner | R2717 |
|---|---|
| Outer | R5997 |
Drive & Gradeability
| Max Speed @ 0% Grade | 22.0 km/h |
|---|---|
| Max Speed @ 5% Grade | 19.4 km/h |
| Max Speed @ 10% Grade | 16.9 km/h |
| Max Speed @ 15% Grade | 14.0 km/h |
| Max Speed @ 20% Grade | 11.7 km/h |
| Max Speed @ 25% Grade | 9.2 km/h |
| Max Grade Climb Ability | 26% @ 8.7 km/h |
