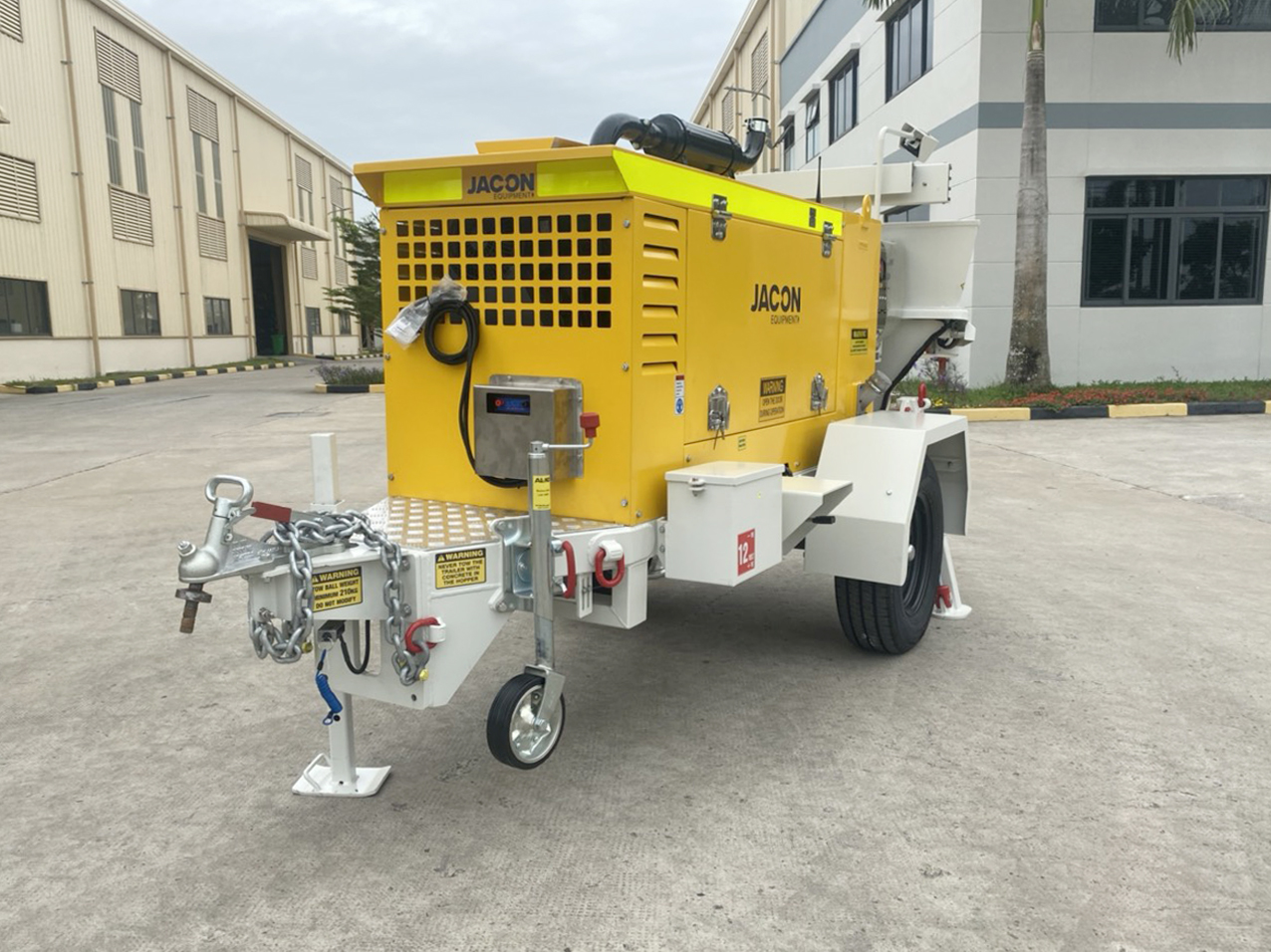

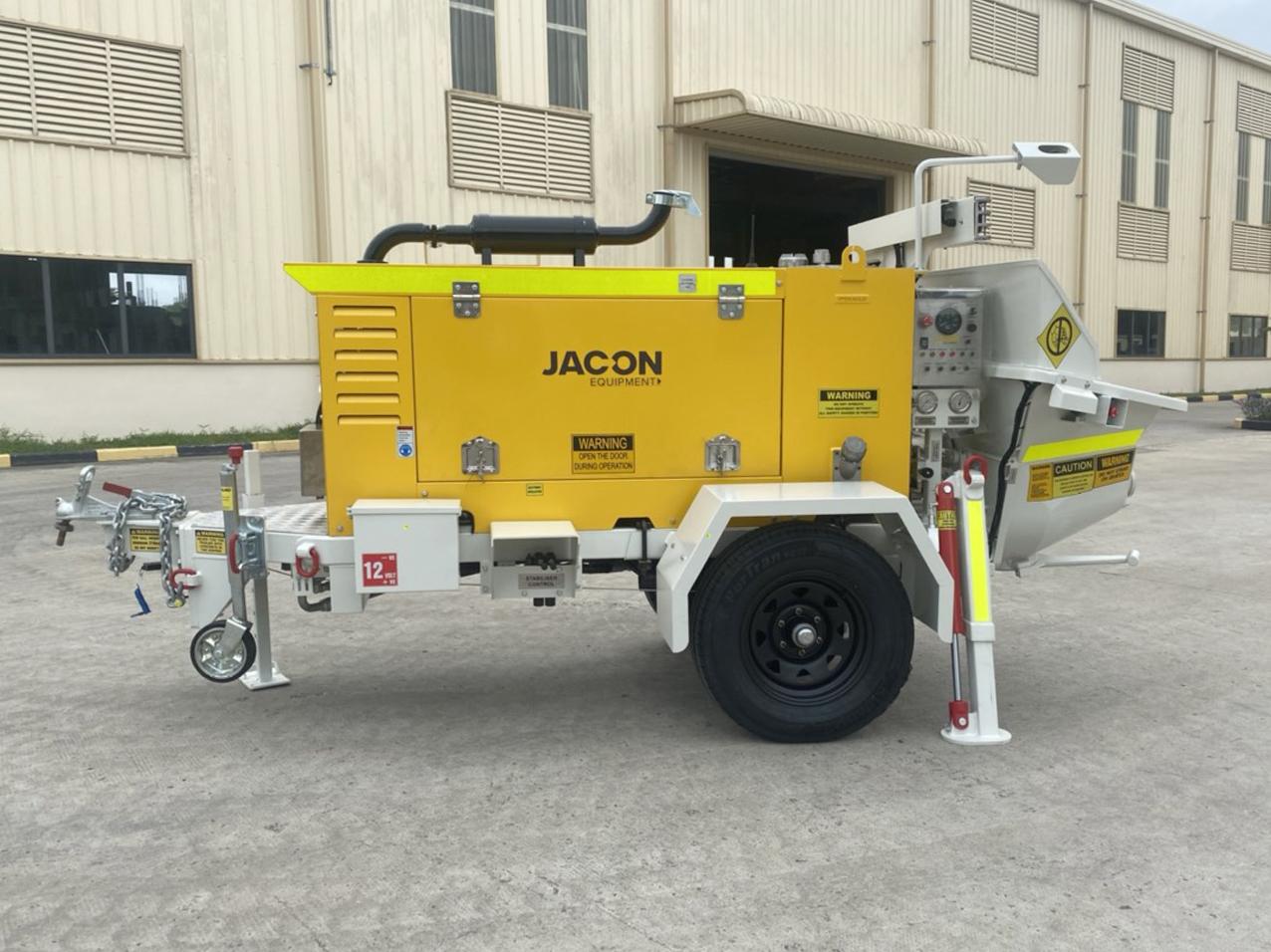

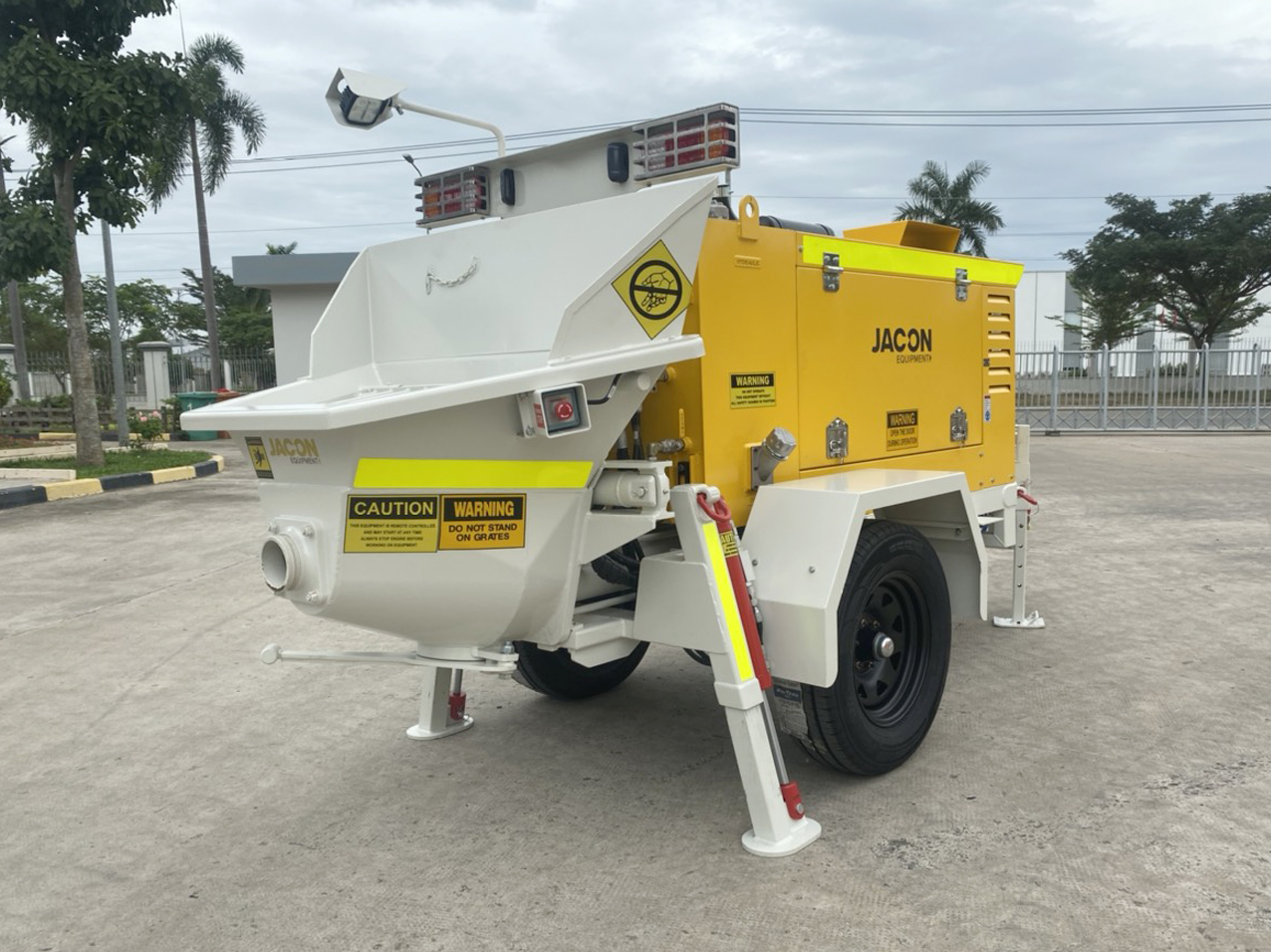

S30 Trailer Mounted Concrete Pump
JACON’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as footings, concrete slabs, blockfilling, footpaths and driveways.
The S-Series Trailer Pumps are available in both diesel and electric powered options and can be configured to trailer, skid and track mounted options to adapt different working environments.
Key features
- Rexroth Variable Displacement Hydraulic Piston Pump
- Spot Light on Hopper
- Single Channel Cordless Remote System
- Alko Heavy Duty Suspension Axle
- Hydraulic Jack Legs on rear
- Lifting Lugs
- Over-ride Electric Brakes
- 12 or 24V Brake module
- Rear ADR Lights cable and plug
You must be logged in to post a review.
Related products
-
T125 Truck Mounted Concrete Pump
Read moreJACON’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product -
T60 Truck Mounted Concrete Pump
Read moreJACON’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product -
T100 Truck Mounted Concrete Pump
Read moreJACON’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product -
S100 Trailer Mounted Concrete Pump
Read moreJACON’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product
Specifications
| Pump | 125mm hard chromed concrete cylinders with 915mm stroke. S-Valve 125mm – 100mm, swingtube design concrete transfer valve in hopper with 100mm Outlet |
|---|---|
| Power Unit | 4 Cylinder Deutz Engine 55KW @ 2200RPM |
| Hydraulic Pressure Max | 250 Bar |
| Rated Output | 0-30 Cubic Metres / Hour |
| Line Pressure Max | 70 Bar |
| Vertical Reach | 80 Metres |
| Horizontal Reach | 250 Metres |
