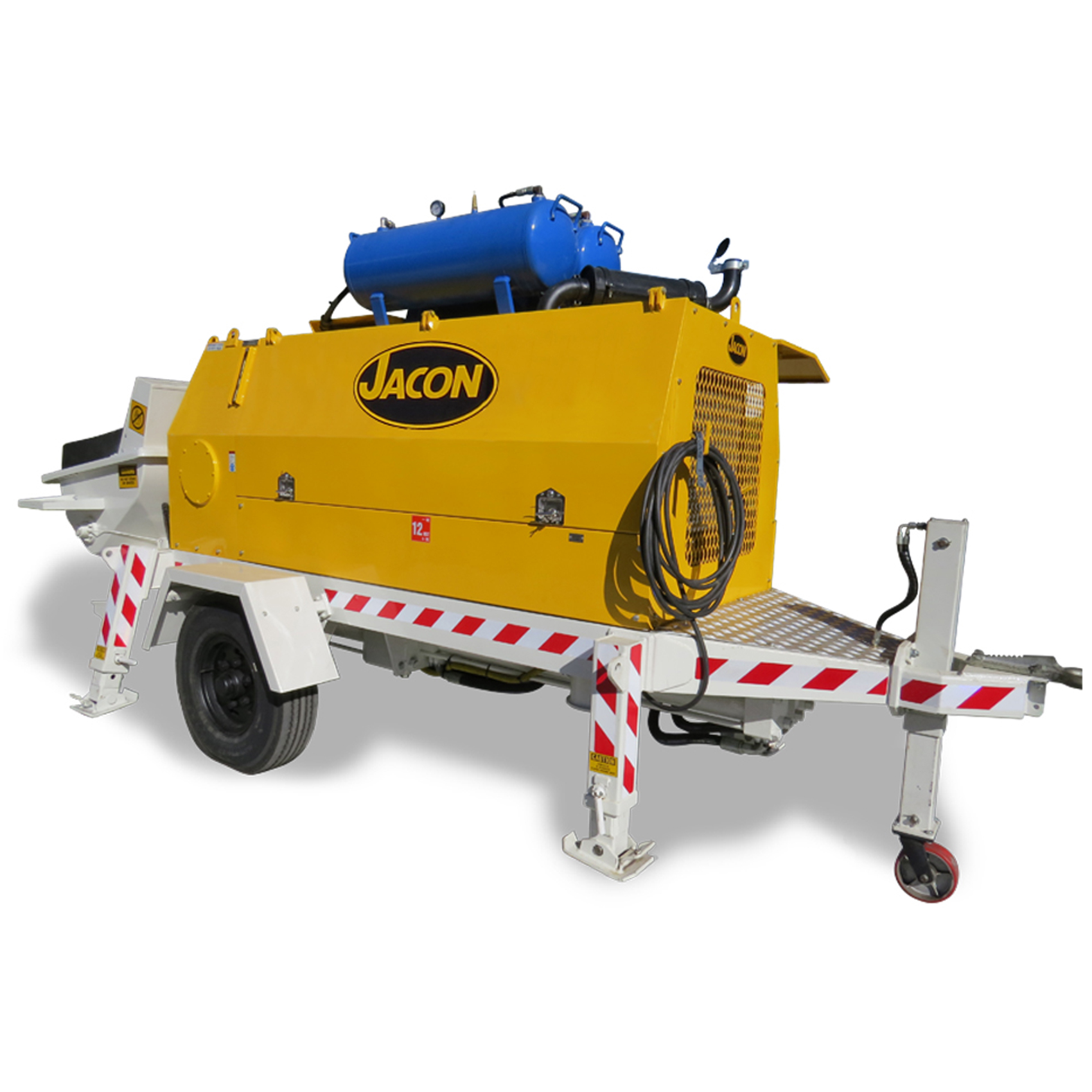

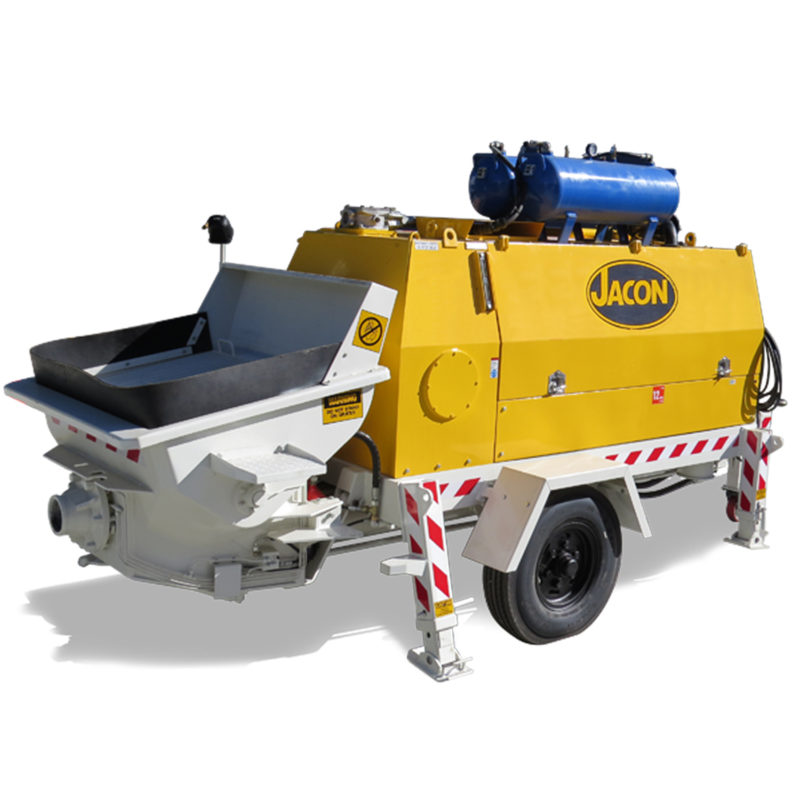

S100 Trailer Mounted Concrete Pump
The S100 is the largest stationary concrete pump in the Jacon range. Engineered to provide maximum output with minimal footprint. Designed with an “S” valve this concrete pump is capable of handling extremely harsh mixes as well as low slump concrete. The compact and robust size of the machine allows for the S100 to be used on applications within the civil mining industry.
The S-Series Trailer Pumps are available in both diesel and electric powered options and can be configured to trailer, skid and track mounted options to adapt different working environments.
Key features
- Hydraulic Pilot System with Electric Over-Ride
- 190cc Variable Displacement Rexroth Piston Pump
- Bathtub Style Hopper with Self-Adjusting Wear Ring & Hopper Remixer
- Aluminum Hopper Cover – Spot Light on Hopper
- Hopper Grate Safety Interlock
- Single Channel Cordless Remote System
- Heavy Duty Rigid Axle
- Hydraulic Jack Legs
- Lifting Lugs
You must be logged in to post a review.
Related products
-
Spraymaster
Read moreThe Spraymaster has been purpose built for trouble free shotcreting operations. With a maximum pumping output of 45m3/hr, (30m3/hr whilst...
View product -
S45 Trailer Mounted Concrete Pump
Read moreThe S45 trailer pump has been specifically engineered to increase the productivity of your job sites. Designed with an “S”...
View product -
S30 Trailer Mounted Concrete Pump
Read moreThis robust and reliable machine is one of the smallest concrete pumps in the Jacon range. Specifically engineered with an...
View product -
T60 Truck Mounted Concrete Pump
Read moreJacon’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product
Specifications
| Power Unit | Turbo Engine 168KW @ 2200RPM |
|---|---|
| Hydraulic Pressure Max (bar) | 350 |
| Rated Output | 100 m3/h |
| Line Pressure Max (bar) | 80 |
| Vertical Reach (m) | 119 |
| Horizontal Reach (m) | 297 |

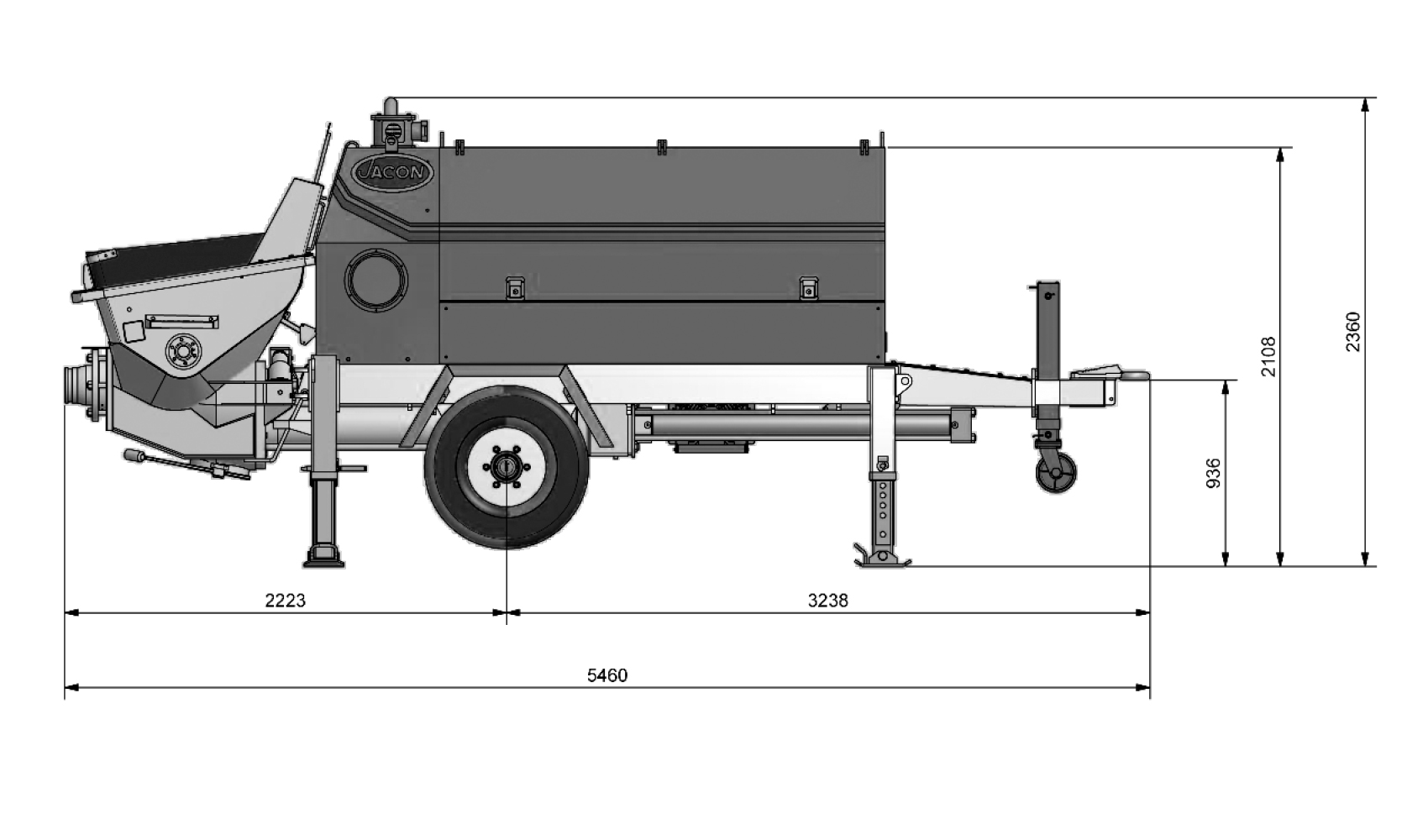

Overall Dimensions
| Length (m) | 5.9 |
|---|---|
| Width (m) | 2 |
| Height (m) | 2.5 |
| Weight (kg) | 5675 |
| Height of coupling point (mm) | 930 |
