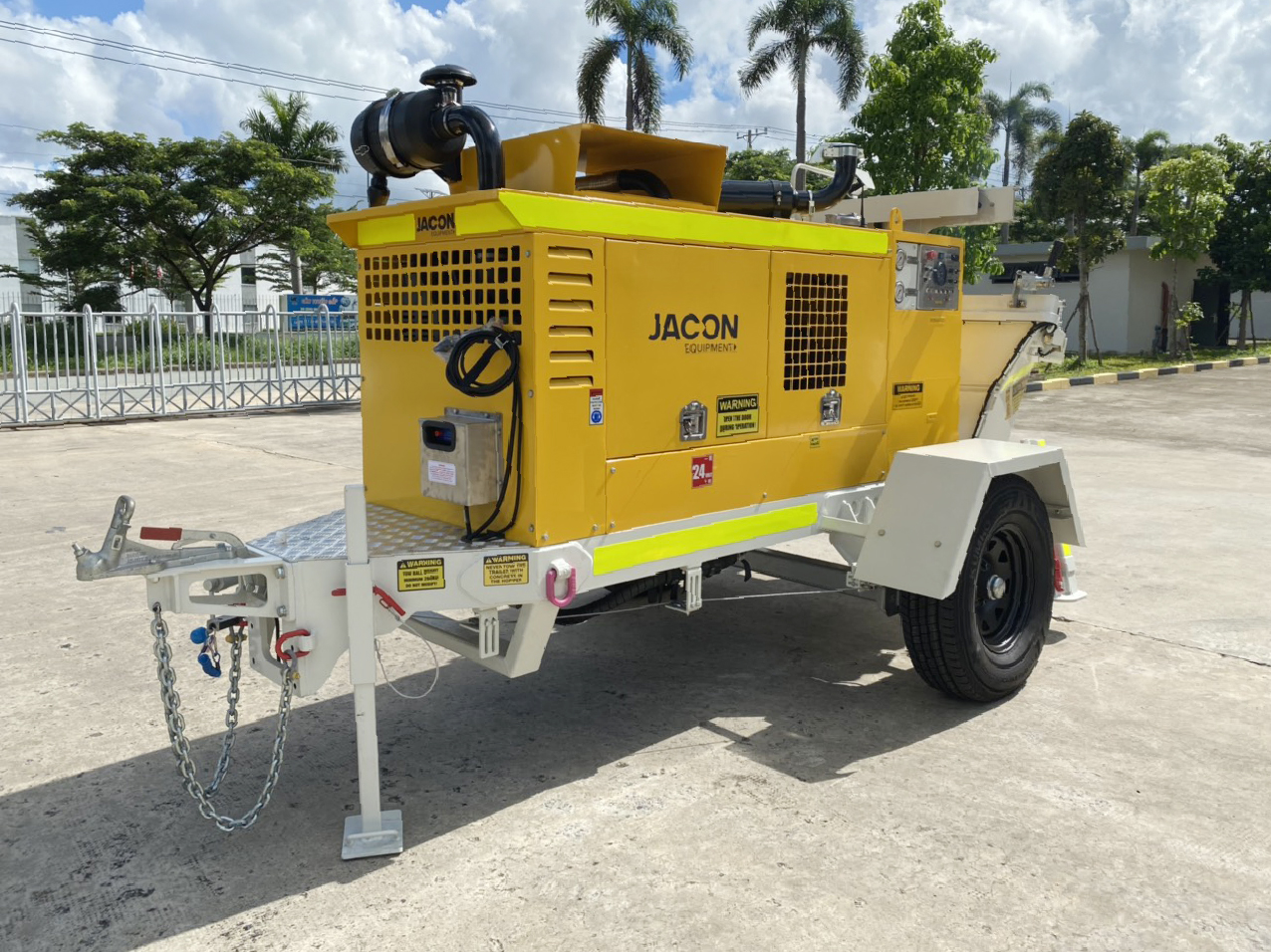

S45 Trailer Mounted Concrete Pump
The S45 trailer pump has been specifically engineered to increase the productivity of your job sites. Designed with an “S” valve this concrete pump is capable of handling extremely harsh mixes as well as low slump concrete. The compact and robust size of the machine allows for the S45 to be used on applications within the civil and mining industry.
The S-Series Trailer Pumps are available in both diesel and electric powered options and can be configured to trailer, skid and track mounted options to adapt different working environments.
Key features
- Variable Displacement Piston Pump
- Four Channel Cordless Remote System
- Heavy Duty Suspension Axle
- Rear ADR Lights cable and plug
- Hydraulic Jack Legs on rear
- Lifting Lugs
- Over-ride Electric Brakes
- 12 or 24V Brake module

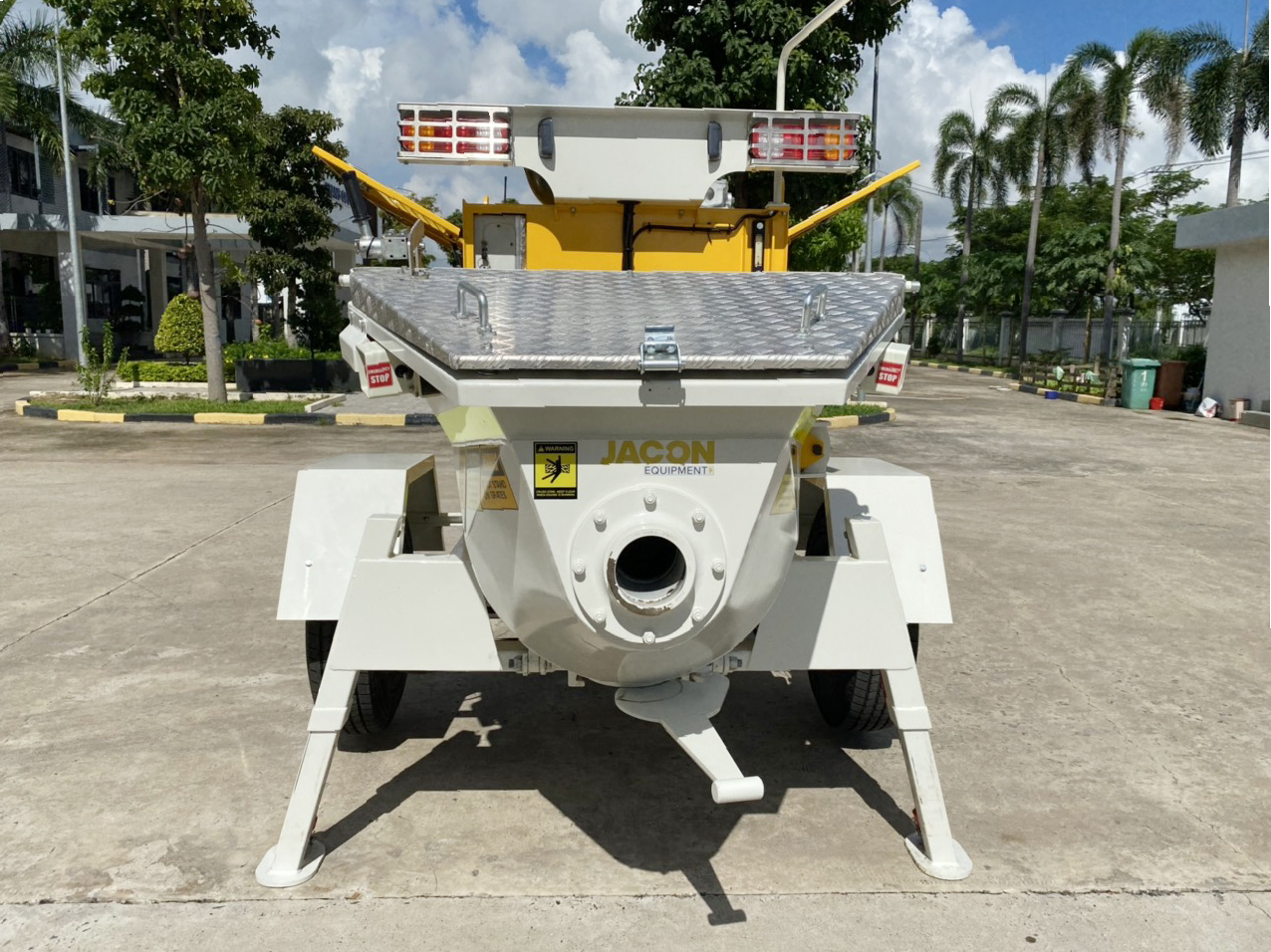

- Spotlight on Hopper
You must be logged in to post a review.
Related products
-
T100 Truck Mounted Concrete Pump
Read moreJacon’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product -
T75 Truck Mounted Concrete Pump
Read moreJacon’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product -
T60 Truck Mounted Concrete Pump
Read moreJacon’s enhanced range of concrete pumps vary in output capabilities to provide a variety of concrete pumping services such as...
View product -
S30 Trailer Mounted Concrete Pump
Read moreThis robust and reliable machine is one of the smallest concrete pumps in the Jacon range. Specifically engineered with an...
View product
Specifications
| Engine | Deutz 72 kW @ 2200 rpm |
|---|---|
| Hydraulic Pressure Max | 250 Bar |
| Rated Output | 45 m3/h |
| Line Pressure Max | 63 Bar |
| Vertical Reach | 94 m |
| Horizontal Reach | 236 m |
Overal Dimensions
| Length (m) | 4.5 |
|---|---|
| Width (m) | 1.8 |
| Height (m) | 2.1 |
| Weight (kg) | 2700 |
| Height of coupling point (mm) | 760 |
