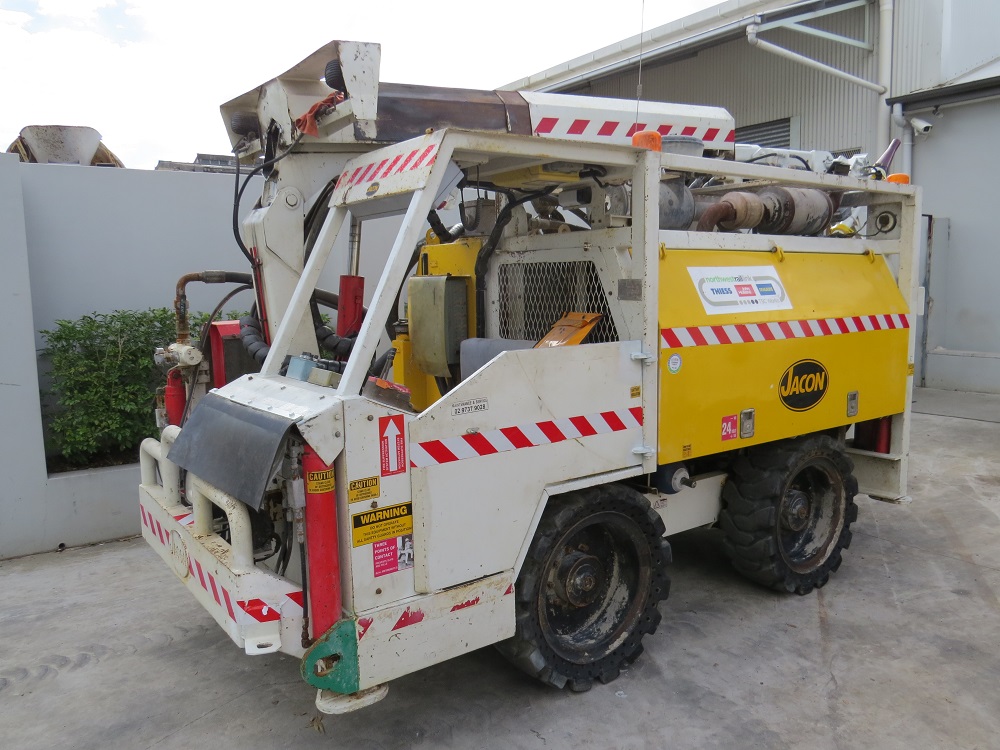

Midjet MK4.5 (168)
Key features
- Hydraulic Outriggers
- Compact Construction
- Warning Strobe Light
- Solid Tyres
- Catalytic Converter & Spark Arrestor
- Reverse Light
- Chemical Pump with Digital Flowmeter
- Diesel Pre-Spray Pump
- Dual Circuit Hydraulic System, for Positive Swingtube Displacement
- Fully Hydraulic Pilot System with Electric Instant Reverse
- Control on Main Cylinders
- Fully Automatic Stroke Adjustment
- Pressure Filtration
- Hydraulic Oil Cooler
- Pump Can Be Controlled by Remote Control
- Forward / Reverse and On / Off
You must be logged in to post a review.
Specifications
Electronic Diesel Engine rated at 94 kW @ 2300 RPM | |
---|---|
Four Wheel Skid Steering | |
Hydrostatic Transmission Pump | |
Inboard Hydraulic Disc on Each Wheel | |
11km/hr Road Speed, Fully Loaded | |
300L Hydraulic Oil Capacity | |
Concrete Cylinders: 150mm Hard Chromed with 1145mm Stroke | |
210 Bar Maximum Hydraulic Pressure | |
60 Bar Maximum Line Pressure | |
Rated Output of 20m3 @ 16 Stroked per minute | |
Actual Output | 0-18 Cubic Metres per hour |
Actual Height | 50 metres |
Horizontal Distance | 180 metres |
Aggregate Sizes | Up to 40mm that falls within accepted grading curve envelopes for pump mix |
Fire Suppression System |
